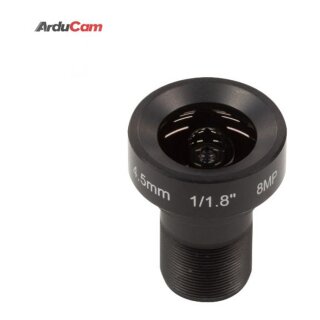

Arducam LN081 1/1.8'' 4K 4.5mm M12 Lens for OS08A10,OS08A20 and more image sensors with large optical format
Artno.: AC3-700810
Arducam 1/1.8'' 4K 4.5mm M12 Lens for OS08A10,OS08A20 and more image sensors with large optical format

35.90 € incl. 19% VAT
30.17 € excl. VAT
Orderable

Shipping time: 61 - 63 business days

Description

In order to meet the new demands of the lens to work with more image sensors with the large optical format and high resolution, Arducam selected and tested a wide range of 4K M12-mount lenses from long focus to wide angle for shooting on your high quality cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.

This 4.5mm F/2.0 M12 lens provides a 75° Horizontal Field of View on 1/2.3" sensors.

Lens Specification

Model No: M18450H09
Resolution: 8MP+
Optical Format: ~9.0mm Image circle(Up to 1/1.8")
Effective Focal Length: 4.5mm
Back Focal Length: 7.64mm
HFOV on 1/1.8" Camera: 90°
HFOV on 1/2.3" Camera: 75°
IR Sensitivity: With 650nm IR filter, sensitive to visible light
Construction: 8G+IR
Aperture: F2.0
MOD: 0.3m
Mount: M12 x P0.5
Length Holder Height: 10~12mm
Dimension: ?20 x 25.21mm
Weight: 12.5g
See Datasheet for more values

Package Contents

  • 1pcs Arducam 1/1.8" 4K M12 Mount 4.5mm Focal Length Camera Lens M18450H09
  • 1pcs M12 lens adapter
