Description

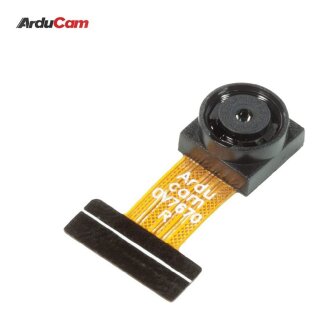

This CCM (compact camera module) based on an OV7670 sensor, constructed with a high quality stock lens and FPC with 24 pin Goldfinger interface.
It has an image array capable of operating at up to 30 frames per second (fps) in VGA with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control and more, are also programmable through the SCCB interface.
Feature
- This 0.3MP mini Compact Camera Module is based on the low voltage CMOS image sensor OV7670, which provides the full functionality of a single-chip VGA camera and image processor.
- The maximum framerate of 30fps at VGA resolutions with complete user control over image quality, formatting and output data transfer through the Serial Camera Control Bus (SCCB).
- Resolution: 640 x 480 (VGA); Maximum Image Transfer Rate: 30fps@VGA; Output Format(8-bit): YUV/YCbCr 4:2:2, RGB565/555/444, GRB 4:2:2, Raw RGB Data
- Lens SPEC: Stock lens; 45 degree (D) field of view angle; Integral 650 IR filter, visible light only; Lower than 1% distortion.
- Recommended for electronic lovers, this CCM is compatible with Arduino, Maple, ChipKit, STM32, ARM, DSP, FPGA, and other MCU platforms.
Specification
Camera
- Array Size: 640 x 480 (VGA)
- Power Supply
Digital Core: 1.8VDC ± 10%
Analog: 2.45V to 3.0V
I/O: 1.7V to 3.3V
- Image Sensor Format: Type 1/6"
- Maximum Image Transfer Rate: 640×480@30fps
- Sensitivity: 1.3V/(Lux sec)
- Dynamic Range: 52dB
- Pixel Size: 3.6 um * 3.6 um
- Dark Current: 12mV/s at 60°C
- Output Format (8-bit): YUV/YCbCr 4:2:2, RGB565/555/444, GRB 4:2:2, Raw RGB Data
- Shutter Type: Rolling Shutter
- Automatic Image Control Functions: Automatic exposure control (AEC), automatic gain control(AGC), automatic white balance (AWB), automatic band filter (ABF), and automatic black-lever calibration (ABLC)
Lens
- EFL: 3.37mm
- F.NO: 2.2
- View Angle: 45 degree (diagonal)
- Distortion: <1.0%
- IR Sensitivity: Integral 650nm IR filter, visible light only
- Lens Type: Fixed focus
Module
- Overall Dimension: 21 x 12.5 x 4.6mm
- Interface: 24 pin goldenfinger
- Mating Connector: F32R-1A7H1-11024
1pcs Arducam OV7670 CCM
