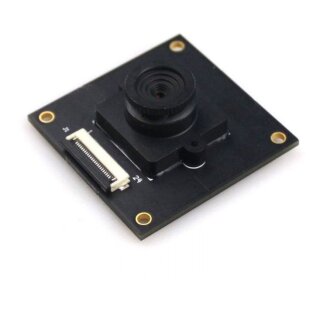

Arducam U3182 CMOS OV7725 Camera Module 1/4-Inch 0.3-Megapixel Module

Arducam U3182 CMOS OV7725 Camera Module 1/4-Inch 0.3-Megapixel Module

Artnr.: AC2-731820
Hersteller: Arducam

CMOS OV7725 Camera Module 1/4-Inch 0.3-Megapixel Module

17,90 €

inkl. 19% MwSt.

(15,04 € exkl. MwSt.)

zzgl.

ausverkauft

Beschreibung
Kundenrezensionen

The OV7725 camera module is based on Omnivision OV7725 image sensor which is a low voltage CMOS device that provides the full functionality of a single-chip VGA camera and image processor, as well as the extraordinary high frame rate and low light performance. The OV7725 provides full-frame, sub-sampled or windowed 8-bit/10-bit images in a wide range of formats, controlled through the Serial Camera Control Bus (SCCB) interface. This device has an image array capable of operating at up to 60 frames per second (fps) in VGA with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control and more, are also programmable through the SCCB interface. In addition, OmniVision sensors use proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as fixed pattern noise, smearing, blooming, etc., to produce a clean, fully stable color image

Features:

High sensitivity for low-light operation
Standard SCCB interface
Output support for Raw RGB, RGB (GRB 4:2:2, RGB565/555/444) and YCbCr (4:2:2) formats
Supports image sizes: VGA, QVGA, and any size scaling down from CIF to 40x30
VarioPixel® method for sub-sampling
Automatic image control functions including: Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming
ISP includes noise reduction and defect correction
Lens shading correction
Saturation level auto adjust (UV adjust)
Edge enhancement level auto adjust
De-noise level auto adjust
Frame synchronization capability

Application:

Cellular phones
PDAs
Toys
Other battery-powered products
Can be used in Arduino, Maple, ChipKit, STM32, ARM, DSP, FPGA platforms

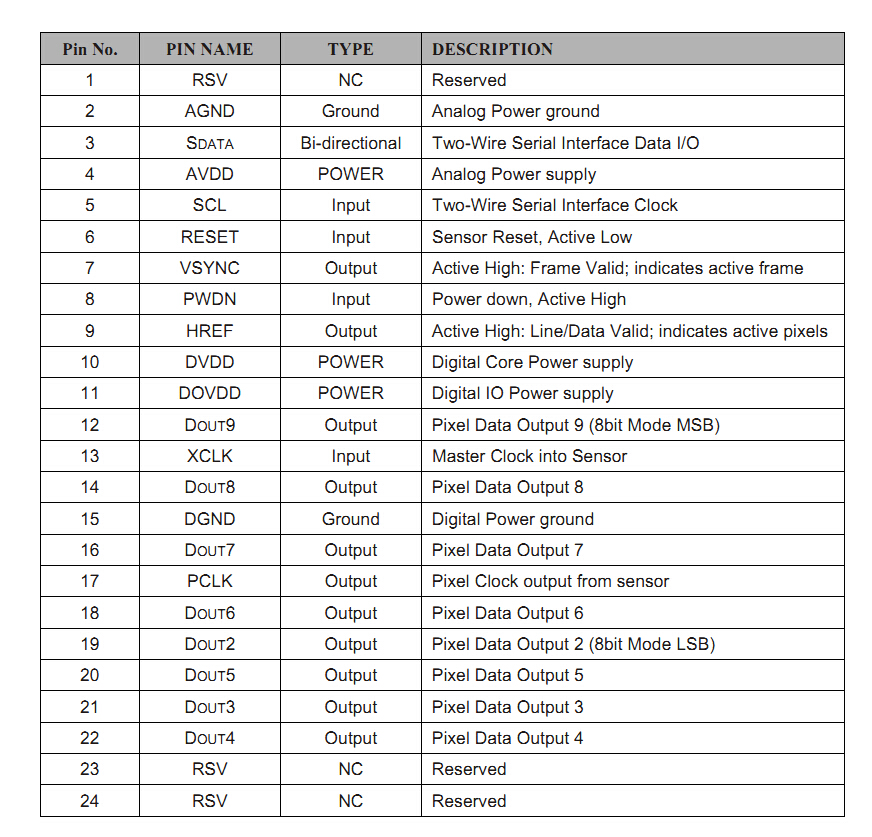

Pin Definition:

Package including:

1pcs CMOS OV7725 Camera Module 1/4-Inch 0.3-Megapixel Module

Additional Resources:
