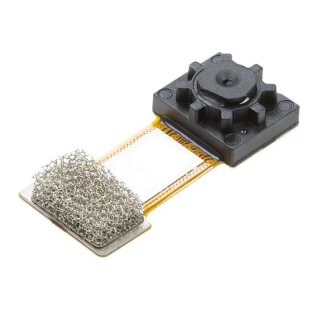

Arducam U6070 1/7.5'' CMOS OV7251 Global Shutter Standalone Camera UC-7251-716

Items Description:

Features:

• EFL: 1.3mm F.No: 2.2
• View Angle: D85.6°/H72.9°/V57.7°
• Distortion: <1.5%
• Image quality: >=200LW/PH(AT=0.13m)
• Focusing Range: 0.065m-8(AT=0.13m)
• Chip Type: OV7251-G04A-1E(COB)
• Build-in 650nm IR block filter
• Array Size: 640*480 Lens Size: 1/7.5 inch
• 3x3µm pixel with Omnipixel3-GS technology
• Support putput format:8/10-bit RAW
• Support 2x2 monochrome binning
• One-lane MIPI serial output interface
• Active array size: 640*480
• Output interface:1-lane MIPI/LVDS serial output output formats: 10-bit RGB RAW or BW
• Maximum image transfer rate: 640*480: 100 fps
• Camera connector: BBR13-24K6417, Board connector: BBR43-24KB533
• Contact us (info@uctronics.com) for PIN definition

Application:

• Cellulare phones
• Digital still cameras (DSC)
• Digital video camcorders (DVP)
• PC multimadia
• Tablets

Package Includes:

• 1pcs 1/7.5'' CMOS OV7251 Global Shutter Standalone Camera UC-7251-716
