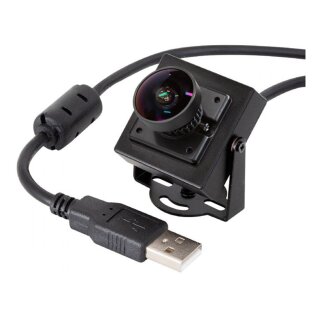

Arducam UB020201 1080P Low Light WDR USB Camera Module with Metal Case
Artnr.: AC2-802021
Arducam 1080P Low Light WDR USB Camera Module with Metal Case, 2MP 1/2.8" CMOS IMX291 160 Degree Ultra Wide Angle Mini UVC Webcam Board with Microphone, 3.3ft/1m Cable for Windows Linux Mac OS

69,90 € inkl. 19% MwSt.
58,74 € exkl. MwSt.

zzgl. Versand

ab Lager lieferbar

Lieferzeit: 1 - 3 Arbeitstage

Beschreibung

The B020201 is a new member of the Arducam's USB camera family. Based on the 1/2.8" Sony IMX291 image sensor, it's a 2MP, UVC compliant, ultra wide angle, low light, high speed USB 2.0 camera with metal case.

Specifications
- Sensor: 1/2.8" IMX291
- Resolution: 2MP 1945H x 1109V
- Data Format: MJPG/YUY2/H.264
- Frame Rate: MJPG: 30fps@1920×1080/1280×720/800×600/640×480/320×240
YUV: 5fps@1920×1080; 10fps@1280×720/800×600; 30fps@640×480/320×240
H.264: 30fps@1920×1080/1280×720@30fps/800×600/640×480/320×240
- Dynamic Range: 80DB

Lens
- Field of View (FOV): D= 160°
- Lens Mount: M12
- Focusing Range: 6.56ft (2M) to infinity
- IR Sensitivity: Integral IR filter, visible light only

Functionality and Compatibility
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio:Single microphone (optional dual channel)
- System Compatibility: Windows, Linux, and Mac with UVC (Android compatibility: contact us for support.)

Power
- Power Supply: USB powered 5V
- Working Current: MAX 300mA

Physical
- Operating Temp.: -4°F~158°F (-20°C~+70°C)
- Dimension: 39x42mm
- Cable Length: 3.3ft (1M)

Additional Resources

User Guide
