Description

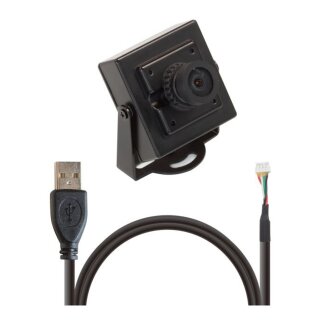

Arducam UB023301 is a new member of Arducam's USB camera family. It's a 5MP, based on the 1/4" OV5648 image sensor, UVC compliant, wide-angle USB 2.0 camera. Ultra HD resolution meets your request for higher quality video still pictures resolution.
This is a portable USB camera that comes with a metal case and rotatable bracket, you can easily put it on a desk or install it on a trip or on the wall with screws and adjust to your preferred angles, great for home security monitoring, online teaching, live streaming, online meeting or embedded industrial project.
Features
- Ultra HD Resolution: This camera adopts the 5MP OV5648 Color COMS sensor for sharp images and accurate color reproduction. Max resolution: 2592 x 1944, High frame rate 1080P@30fps, Compression format: MJPG / YUY2; Saturation, Contrast, White balance adjustable.
- Wide Angle: Assembled with a 90-degree horizontal view angle M12 lens with IR filter, which provides a much wider Field of View compared to other lenses.
- Frame Rates: MJPG 15fps@2592 x 1944/2048 x 1536; 30fps@1080P/720P/1024 x 768/800 x 600; YUY2 5fps@720P/1080P; 10fps@1024 x 768; 15fps@800 x 600.
- Plug & Play: Ready to use, UVC-compliant, just connect the camera to a PC computer, laptop, Android device, or Raspberry Pi with the USB cable without extra drivers to be installed.
- Applications: Come with a metal case and rotatable bracket, this tiny camera is highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other vision
Camera
– Sensor: 1/4" OV5648
– Resolution: 5MP 2592 x 1944
– Data Format: MJPG 15fps@2592 x 1944/2048 x 1536; 30fps@1080P/720P/1024 x 768/800 x 600; YUY2 5fps@720P/1080P; 10fps@1024 x 768; 15fps@800 x 600.
Lens
– Field of View (FOV): 90 degree (H)
– Lens Mount: M12
– IR Sensitivity: Integral 650nm IR filter, visible light only
– Focusing Range: 3.3ft (1M) to infinity
Functionality and Compatibility
– Adjustable parameter: Contrast/ Saturation/ Exposure/ White balance
– System Compatibility: Win7/8/10, Linux, Mac, and OS with UVC driver
Power
– Power Supply: USB powered 5V
– Working Current: MAX 250mA
Physical
– Operating Temp.: -4°F~158°F (-20°C~+70°C).
– Dimension: 40mmx25mmx45mm
– Cable Length: 3.3ft (1M)
Documentation
| Shipping weight: | 0.10 Kg |
