Item description

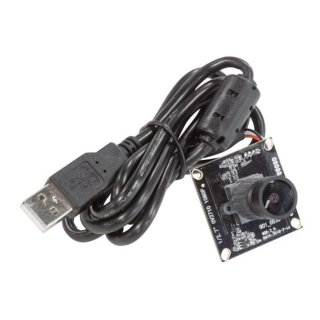

Arducam UB0234 is a 2MP, based on the 1/2.7" CMOS OV2710 image sensor, UVC compliant, USB 2.0 camera.
Feature
- Ultra HD Resolution: 1080P HD USB Camera Board based on a 1/2.7" CMOS OV2710 image sensor, this is a great camera board with high pixel technology for sharp image and accurate color reproduction.
- Wide Angle: Assembled with a 105-degree horizontal view angle M12 lens with IR filter, which can capture every detail of the picture and provides a much wider Field of View compared to other lenses.
- High Frame Rates: 2 Megapixel HD USB camera Module has a high frame rate, this USB camera board delivery decent and smooth image quality. MJPG 30fps@1080P/720P/640 x 360/800 x 600/960 x 720/432 x 240/800 x 600/320 x 184; YUY2 5fps@1080P/1024 x 768/1280 x 960; 10fps@1280 x 720; 15fps@960 x 720; 20fps@800 x 600; 30fps@432 x 240.
- Plug & Play: UVC-compliant, just connect the camera to a PC computer, laptop, Android device, or Raspberry Pi with the USB cable without extra drivers to be installed.
- Applications: This 1080P USB Camera Board has a mini size, only 32x32mm, widely used for the video surveillance system, live streaming, video conference, dashcam, and other video vision applications.
- Serial Number: Supports modifying the Serial Number.
Specifications
Camera
- Sensor: 1/2.7" OV2710
- Resolution: 1920(H)x1080(V)
-Frame Rate: MJPG 30fps@1080P/720P/640 x 360/800 x 600/960 x 720/432 x 240/800 x 600/320 x 184; YUY2 5fps@1080P/1024 x 768/1280 x 960; 10fps@1280 x 720; 15fps@960 x 720; 20fps@800 x 600; 30fps@432 x 240.
Lens
-Field of View (FOV): 105°(H)
-Lens Mount: M12
-IR Sensitivity: Integral 650 IR filter, only visible light
- Focusing Range: 3.3ft (1M) to infinity
Functionality and Compatibility
-Adjustable parameter: Saturation, Contrast, Acutance, White balance, Exposure.
-System Compatibility: Windows XP (SP2, SP3)/Vista/7/8/10, Linux, and Mac with UVC
Power
-Power supply: USB powered 5V
-Working Current: MAX 200mA
Physical
-Operating Temp: -4°F~158°F (-20°C~+70°C).
-Dimension: 32mmx32mm
-Hole Pitch: 28mmx28mm
-Cable Length: 3.3ft (1M)
