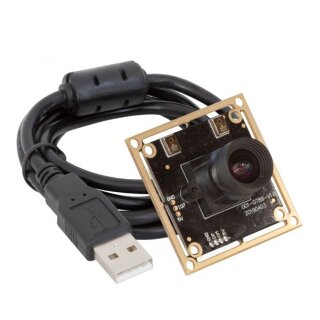

Arducam UB0236 HD Wide Angle USB Camera Board
Beschreibung
Product description
Arducam UB0236 is a 5MP, based on the 1/2.8" IMX335 image sensor, UVC compliant, wide angle USB 2.0 camera.
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
Ultra HD resolution and high frame rate meet your request of higher quality video and still pictures resolution.
Feature
- Ultra HD Resolution: This camera adopts the 5MP IMX335 Color COMS sensor for sharp images and accurate color reproduction with 72DB high dynamic range.
- Wide Angle: Assembled with a 75-degree horizontal view angle M12 lens with IR filter, which provides a much wider Field of View.
- High Frame Rates: MJPG 30fps@2592 x 1944/2048 x 1536; 30fps@1080P/720P/1024 x 768/800 x 600; YUY2 20fps@800 x 600; 3fps@1920 x 1080; 30fps@640 x 480.
- Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
- Applications: Highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other video vision applications need high frame rates with high resolution.
APPLICATIONS
Home video surveillance system
Live streaming
Videoconference
Monitoring 3D printer
Dashcam
......
SPECS
Camera
- Sensor: 1/2.8" IMX335
- Resolution: 5MP 2592 x 1944
- Dynamic Range: 72DB
- Frame Rate: MJPG 30fps@2592 x 1944/2048 x 1536; 30fps@1080P/720P/1024 x 768/800 x 600; YUY2 20fps@800 x 600; 3fps@1920 x 1080; 30fps@640 x 480.
Lens
- Field of View (FOV): 75 degree (H)
- Lens Mount: M12
- IR Sensitivity: Integral 650nm IR filter, visible light only
- Focusing Range: 3.3ft (1M) to infinity
Functionality and Compatibility
- Adjustable parameter: Contrast/ Saturation/ Exposure/ White balance
- Audio: Dual microphones
- System Compatibility: Win7/8/10, Linux, Mac OS with UVC driver
Power
- Power Supply: USB powered 5V
- Working Current: MAX 300mA
Physical
- Operating Temp.: -4°F~158°F (-20°C~+70°C).
- Dimension: 38mmx38mm
- Hole Pitch: compatible with 34x34mm, 28x28mm
