Arducam UB0238 5MP Auto Focus Mini USB Camera Board for Computer

Arducam UB0238 5MP Auto Focus Mini USB Camera Board for Computer

Artnr.: AC2-802380
Hersteller: Arducam

Arducam 5MP Auto Focus Mini USB Camera Board for Computer, 1/4” CMOS OV5648 UVC USB2.0 Video Webcam with Microphone

41,90 €

inkl. 19% MwSt.

(35,21 € exkl. MwSt.)

zzgl.

ausverkauft

Beschreibung
Kundenrezensionen

Item description

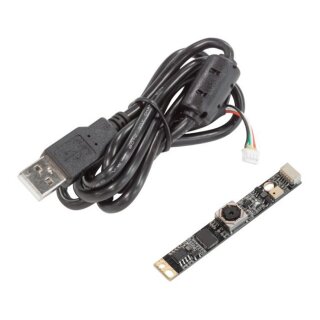

The UB0238 is a new member of the Arducam's USB camera family. It's a 5MP, UVC compliant, USB 2.0 camera. This USB camera is based on the 1/4" Sony OV5648 image sensor.

Feature

5 Megapixel USB camera High Definition 2592*1944 resolution webcam with autofocus lens is able to ensure your videos are always sharp and crystal clear.
1/4" CMOS OV5640 Image sensor Webcams. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial.
Super small and Mini Size for your embedded applications. Compact camera for all kinds of machine vision.
Just plug the USB cable into your PC's USB port, plug and play, there is no need to download or install complicated driving software.
USB webcam widely works with WinXP/Vista/Windows 7/8, Windows 10 Linux with UVC. Webcam for MAC, PC, desktop computer, laptop USB.
Serial Number: Supports modifying the Serial Number.

Specifications

Camera

- Sensor: 1/4" OV5648

- Resolution: 2592(H)x1944(V)

-Frame Rate: MJPG 15fps@2592 x 1944/1600 x 1200; 30fps@1080P/1280 x 960/1280 x 720/1024 x 768/800 x 600/640 x 480; YUY2 2fps@2592 x 1944; 3fps@2048 x 1536; 5fps@1920 x 1080/1600 x 1200/1280 x 960; 10fps@1280 x 720/1024 x 768; 15fps@800 x 600; 20fps@640 x 480.

Lens

-Field of View (FOV): 70°(D)

-Lens Mount: M6.5

-IR Sensitivity: Integral 650 IR filter, only visible light

Functionality and Compatibility

-Adjustable parameter: Saturation, Contrast, Acutance, White balance, Exposure.

-System Compatibility: Windows XP (SP2, SP3)/Vista/7/8/10, Linux, and Mac with UVC

Power

-Power supply: USB powered 5V

-Working Current: MAX 250mA

Physical

-Operating Temp: -4°F~158°F (-20°C~+70°C).

-Dimension: 62mmx9mmx5mm

-Cable Length: 3.3ft (1M)

Documentation

Manual

Datasheet

How to modify the serial number
