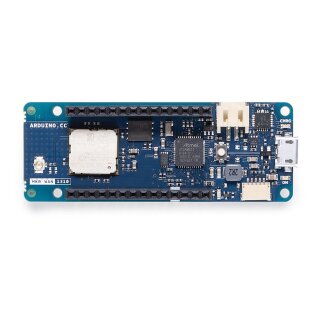

Arduino MKR WAN 1310

Arduino MKR WAN 1310 allows you to build your next smart project. Ever wanted an automated house? Or a smart garden? Well, now it?s easy with the Arduino IoT Cloud compatible boards. It means: you can connect devices, visualize data, control and share your projects from anywhere in the world. Whether you?re a beginner or a pro, we have a wide range of plans to make sure you get the features you need.

The Arduino MKR WAN 1310 board provides a practical and cost effective solution to add LoRa® connectivity to projects  requiring low power. This open source board can be connected to the Arduino IoT Cloud.

Better and More Efficient

The MKR WAN 1310, brings in a series of improvements when compared to its predecessor, the MKR WAN 1300. While still based on the Microchip® SAMD21 low power processor, the Murata CMWX1ZZABZ LoRa® module, and the MKR family?s characteristic crypto chip (the ECC508), the MKR WAN 1310 includes a new battery charger, a 2MByte SPI Flash, and improved control of the board?s power consumption.

Improved Battery Power

The latest modifications have considerably improved the battery life on the MKR WAN 1310. When properly configured, the power consumption is now as low as 104uA! It is also possible to use the USB port to supply power (5V) to the board; run the board with or without batteries - the choice is yours.

On-board Storage

Data logging and other OTA (Over The Air) functions are now possible since the inclusion of the on board 2MByte Flash. This new exciting feature will let you transfer configuration files from the infrastructure onto the board, create your own scripting commands, or simply store data locally to send it whenever the connectivity is best. Whilst the MKR WAN 1310?s crypto chip adds further security by storing credentials & certificates in the embedded secure element.

These features make it the perfect IoT node and building block for low-power wide-area IoT devices.

Related Boards

If you are still deciding about the right wireless protocol for your solution, Arduino's MKR family has some alternatives to offer:

• MKR FOX 1200: for your EU solutions on Sigfox infrastructure. Visit its product page here.
• MKR GSM 1400: when looking at global coverage, GSM / 3G is the world's most extended network. Visit its product page here. We also provide you with a bundle including the board and a SIM with a global data plan in case you need it.
• MKR NB 1500: if your solution is designed around Narrowband IoT. Read more about it here.

Getting Started

The Getting Started section contains all the information you need to configure your board, use the Arduino Software (IDE), and start tinkering with coding and electronics.

Need Help?

Check the Arduino Forum for questions about the Arduino Language, or how to make your own Projects with Arduino. Need any help with your board please get in touch with the official Arduino User Support as explained in our Contact Us page.

Warranty

You can find here your board warranty information.
