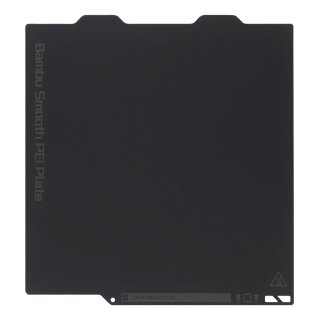

Bambu Lab A1 mini Smooth PEI Plate
Description
The Bambu Dual-Sided Smooth PEI Plate, designed for the Bambu Lab A1 mini, offers high Z-axis precision printing. Its smooth and matte surface finish ensures impeccable print quality. Compatible with a variety of filaments, it excels particularly with PLA. Perfectly suited for the Bambu Lab A1 mini, it guarantees reliable and high-quality prints.
Considerations
- If bubbles appear on the bottom of the sheet, heating it on the heatbed at a temperature of no less than 80 degrees for several hours can be helpful in eliminating the bubbles.
- Deposition of dust and grease on the build plate decrease adhesion. It is recommended to regularly clean the surface with detergent and water to to maintain best adhesion.
- Do not clean the Smooth PEI with Acetone, as it will damage the PEI surface.
- Always wait for a few minutes before removing printed models to allow the plate to cool down for easy print removal. This prevents damage to the plate and ensures a long lifetime of the product.
- Carefully sanding the surface with fine-grit (600 was recommended) sandpaper can help restore adhesion.
- The Smooth PEI plate is considered a consumable part, which will degrade over time. The warranty will only cover manufacturing defects, not cosmetic damage like scratches, dents, or cracks. Defective sheets upon arrival are the only ones covered by the warranty.
Model Overview
| Recommended Settings | ||
|---|---|---|
| Materials | Heatbed Tempe rature | Glue Stick Required |
| PLA/PLA-CF/PLA-GF | 45 up to 60 ℃ | No |
| PETG/PETG-CF | 60 up to 80 ℃ | Glue Stick/Liquid Glue |
| TPU | 35 up to 45 ℃ | Glue Stick/Liquid Glue |
| PVA | 45 up to 60 ℃ | Glue Stick/Liquid Glue |
| Product Specification | |
|---|---|
| Material | Dual-sided PEI Sheet + Spring Steel |
| Surface temperature resistance | up to 120 ℃ |
| Flexible stainless steel plate thickness | 0.4 mm |
| Dual-sided PEI sheet thickness | 0.125 mm |
| Usable print size | 180 x 180 mm |
| Package size | 220 x 190 x 15 mm |
| Package weight | 230 g |
| Color | Black |
Features
High Z-axis precision printing
The use of a Smooth PEI Plate contributes to improved Z-axis precision during the printing process, ensuring greater accuracy and consistency in the vertical dimension. These qualities make the Smooth PEI Plate an excellent choice for printing parts that demand a high level of fit accuracy, where precise alignment and tight tolerances are crucial.

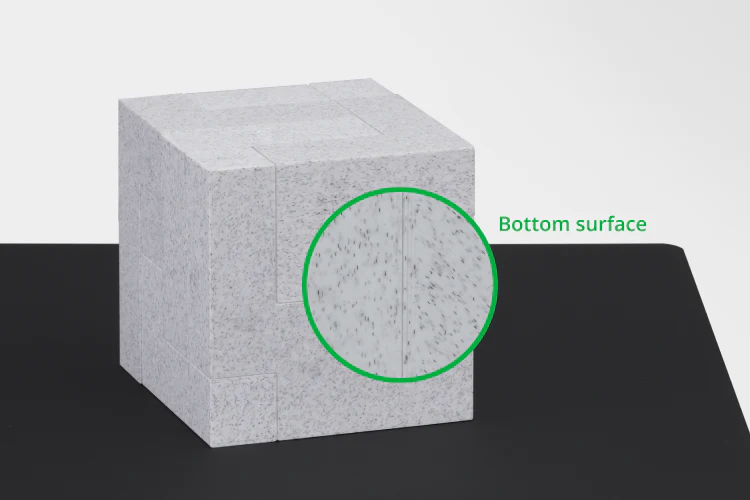

Smooth and Matte surface finish
The use of a specially selected matte PEI sheet can impart a smooth and matte texture to the bottom surface of the printed object, enhancing its overall appearance
Compatibility with various filaments, especially for PLA
PEI enables printing not only with common materials such as PLA, TPU, PETG and PVA. Note: Please apply liquid glue or a glue stick to prevent the sheet from tearing if print filament other than PLA
| Shipping weight: | 0.30 Kg |
