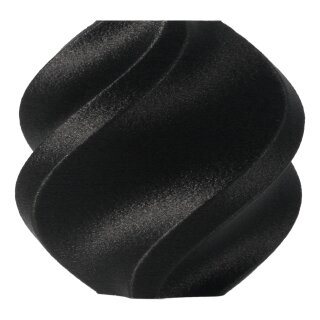

Bambu Lab PAHT-CF Filament on Spool
Description
Bambu PAHT-CF is a composite of PA12 and carbon fiber. Inheriting the advantages of low water absorption from PA12 and high-performance carbon fiber, Bambu PAHT-CF offers excellent mechanical and thermal properties that can be maintained well even when the prints get wet. Higher Z adhesion layers and flexibility make it ideal for creating engineering parts such as functional prototypes, machining fixtures, injection molds, jigs, and low-volume production parts.
Printing Tips
- Drying conditions: 80℃ for 8 hrs. PA6-CF is highly sensitive to humidity. To achieve optimal printing performance, it is recommeded further drying before use and after storage. For more details please refer to: Filament drying instructions on Bambu Lab Wiki.
- Bambu PAHT-CF has high thermal insulation requirements during the printing process, making it unsuitable for use with open-frame printers.
- For better print results, please refer to: Printing tips for Engineering materials on Bambu Lab Wiki.
- Fully impregnating the surface of the prints with paint, wax and other water-proof coatings can inhibit water absorption and prevent them from becoming soft.
- Bambu PAHT-CF comes with a high-temperature resistant spool, which is not prone to deformation in the drying process. Continuing our concept of reducing plastic waste, the spool can also be reused with other Bambu refills.
- All printing parameters are embedded in RFID, which can be read through Bambu Lab AMS (Automatic Material System). Load and print! No more tedious setting steps.
Model Overview
PET-CF | PAHT-CF | |
---|---|---|
Composition | PET, carbon fiber | PA 12 and other long-chain PA, carbon fiber |
Hotend Compatibility | Hardened Steel 0.6 (recommended), 0.4, 0.8 mm | |
Build Plate Compatibility | Engineering Plate, High Temperature Plate, Textured PEI Plate | |
Glue | Glue Stick / Liquid Glue | Glue Stick |
AMS Compatibility | No | Yes |
Print Speed | <100 mm/s | |
Toughness (Impact Strength - XY) | 36.0 kJ/m² | 57.5 kJ/m² |
Strength (Bending Strength - XY) | 131 MPa | 125 MPa |
Stiffness (Bending Modulus - XY) | 5320 MPa | 4230 MPa |
Layer Adhesion (Impact Strength - Z) | 4.5 kJ/m² | 13.3 kJ/m² |
Heat Resistant (HDT, 0.45 MPa) | 205 ℃ | 194 ℃ |
Saturated Water Absorption Rate / % (25 ℃, 55% RH) | 0.37 | 0.88 |
Recommended Printing Settings | |
---|---|
Drying Settings (Blast Drying Oven) | 80 ℃, 8 - 12 h |
Printing and Keeping, Container's Humidity | <20% RH (Sealed, with Desiccant) |
Nozzle Temperature | 260 - 290 ℃ |
Bed Temperature (with Glue) | 80 - 100 ℃ |
Printing Speed | < 100 mm/s |
Physical Properties | |
Density | 1.06 g/cm³ |
Vicat Softening Temperature | 220 ℃ |
Heat Deflection Temperature | 194 ℃ |
Melting Temperature | 225 ℃ |
Melt Index | 14.4 ± 2.0 g/10 min |
Mechanical Properties | |
Tensile Strength | 92 ± 7 MPa |
Breaking Elongation Rate | 8.4 ± 1.8% |
Bending Modulus | 4230 ± 210 MPa |
Bending Strength | 125 ± 7 MPa |
Impact Strength | 57.5 ± 3.4 kJ/m² |
Package Contents
- Filament x 1 & Desiccant x 1
- Package x 1
- Filament Label x 1
Features
![](https://www.welectron.com/mediafiles/productimg/bambulab/filament/bambu_lab_filament_paht-cf_01_normal_pa-cf.png)

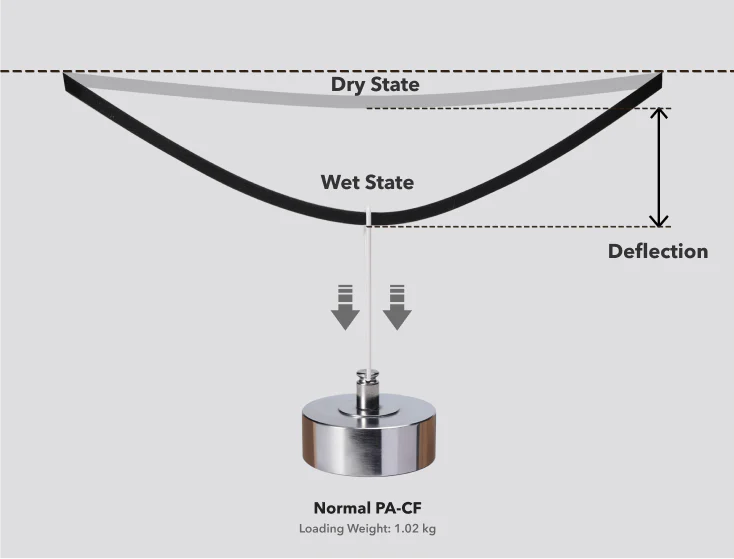

Water absorption: normal PA-CF
Bambu PAHT-CF showcases outstanding mechanical properties and dimensional stability in comparison to a normal PA-CF.
![](https://www.welectron.com/mediafiles/productimg/bambulab/filament/bambu_lab_filament_paht-cf_02_lower_water_absorption.png)

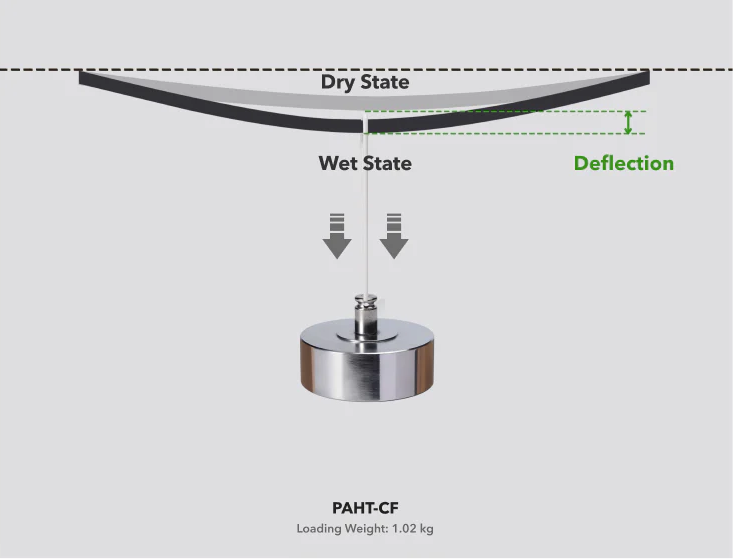

Lower water absorption: PAHT-CF
With a 50% lower water absorption rate compared to normal PA-CF, Bambu PAHT-CF maintains excellent mechanical properties and dimensional stability even when exposed to high humidity.
![](https://www.welectron.com/mediafiles/productimg/bambulab/filament/bambu_lab_filament_paht-cf_03_high_tensile_strength.png)

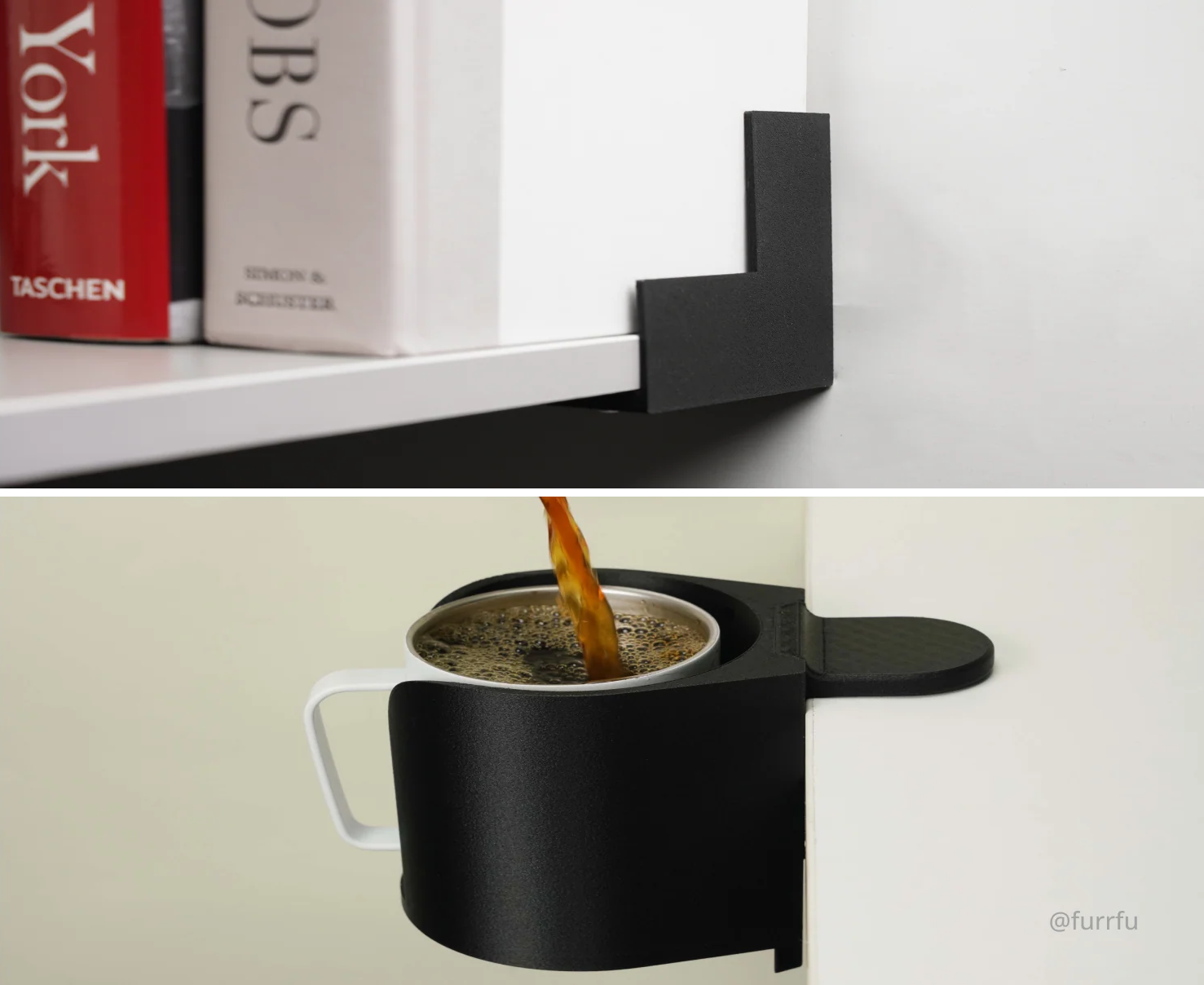

High tensile strength
Bambu PAHT-CF is designed to meet the demands of various industrial and engineering applications where high strength and durability are required.
