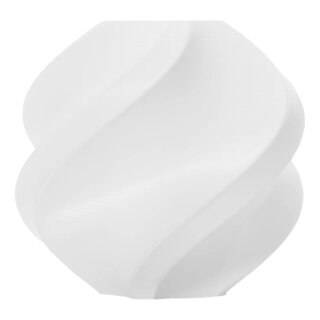

Bambu Lab PC FR Filament on Spool

Artno.: BL5-663100-P
Manufacturers:

UL 94-2023 V-0 Flame Retardanc, Engineering-Level Mechanical Properties, Comes with High Temperature Reusable Spool, Diameter 1.75mm +/- 0.03mm, AMS Compatible, AMS lite NOT Compatible, RFID

Variante: 56,90 €63100 Black

56,90 €63101 White

56,90 €63102 Gray

56,90 €

incl. 19% VAT

(47,82 € excl. VAT)

plus

On stock

Please select a model.

Description
Product Reviews

Bambu PC FR is a high-performance polycarbonate engineered for demanding applications requiring superior flame retardancy, impact resistance, and heat stability. With outstanding durability, Bambu PC FR excels across a wide range of professional applications, including industrial components, protective casings, and high-temperature environments in sectors like automotive, electronics, and manufacturing.

Features

UL 94-2023 V-0 Flame Retardancy
Engineering-Level Mechanical Properties

Accessory Compatibility

	Recommended	Not Recommended
Build Plate	Smooth PEI Plate, Textured PEI Plate	Cool Plate SuperTack
Hotend	All Size / Material	/
Glue	Bambu Liquid Glue Glue Stick	/
AMS & AMS lite	AMS	AMS lite

Printing Tips

Dry before use for higher printing quality. PC FR must be dried before use and kept moisture-free during the printing process. Store in a dry environment, such as an airtight storage container with a desiccant, after use. For more details, please refer to: Printing tips for Engineering materials on WIKI.
In a blast drying oven: 80°C for 8 hours.
On an X1 printer's heatbed: 90°C to 100°C for 12 hours

Model Overview

Color	Hex Code	Display
White	#FFFFFF
Gray	#A8A8AA
Black	#000000

Recommended Printing Settings
Drying Settings (Blast Drying Oven)	80 ℃, 8h
Printing and Keeping, Container's Humidity	<20% RH (Sealed, with Desiccant)
Nozzle Temperature	260 - 280 ℃
Bed Temperature (with Glue)	90 - 110 ℃
Printing Speed	< 300 mm/s
Physical Properties
Density	1.18 g/cm³
Vicat Softening Temperature	114 ℃
Heat Deflection Temperature	113 ℃
Melting Temperature	225 ℃
Melt Index	26.4 ± 2.7 g/10 min
Mechanical Properties
Tensile Strength	60 ± 4 MPa
Breaking Elongation Rate	2.4 ± 0.3 %
Bending Modulus	1890 ± 70 MPa
Bending Strength	90 ± 4 MPa
Impact Strength	55 ± 2.1 kJ/m²

Extended Specifications

Package Contents

Filament with Spool x 1 & Desiccant x 1
Package x 1

Features

Top-Tier Flame Retardancy

Bambu PETG-CF is improved with a modified formula that specifically addresses the issue of clumping and sticking to nozzle during PETG printing.

Engineering-Level Mechanical Properties

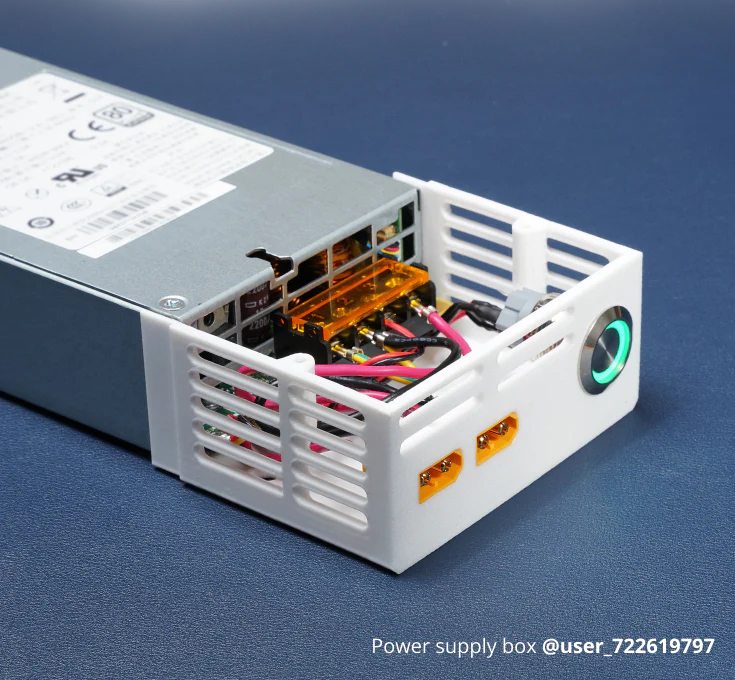

Bambu PC FR is an engineering-grade material with toughness comparable to PAHT-CF. Its exceptional stiffness and strength make it a top choice for structural components and protective casings.
