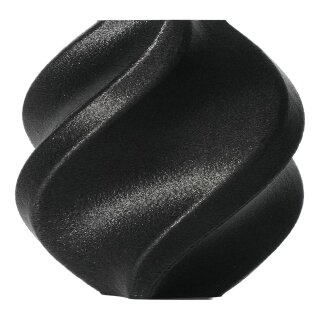

Bambu Lab PET-CF Filament on Spool

Artno.: BL5-607110-P
Manufacturers: Bambu Lab

Carbon Fiber Reinforced PET, PET-CF Filament, Diameter 1.75mm +/- 0.03mm, Low Moisture Absorption, High Dimensional Stability, Exceptional Thermal Resistance, AMS Not Compatible

Variant: 48,90 €71100 Black (500g)

90,90 €71100 Black (1kg)

from

48,90 €

incl. 19% VAT

(41,09 € excl. VAT)

plus

On stock

Please select a model.

Bambu PET-CF is a blend of tough PET and carbon fiber. Carbon fiber improves hardness and mechanical strength, while still help maintain the low warping and shrinkage of ordinary PET. Bambu PET-CF has excellent high temperature resistance and a soft glow appearance. Its excellent strength, heat resistance, dimensional stability and low moisture absorption make Bambu PET-CF an ideal choice for load-bearing structures or prints used in high temperature and humid environments.

Printing Tips

While printing, it is more recommended to use an enclosed printer, as layer bonding of some prints may become compromised due to overcooling.
Drying conditions: 80℃ for 8 hrs. PET-CF is highly sensitive to humidity. To achieve optimal printing performance, it is recommeded further drying before use and after storage. For more details please refer to: Filament drying instructions on Bambu Lab Wiki.
To prevent the material from absorbing moisture, it is recommended to use an airtight storage container with desiccant during printing. For more details, please refer to:Printing tips for Engineering materials on Bambu Lab Wiki.
Bambu PAHT-CF comes with a high-temperature resistant spool, which is not prone to deformation in the drying process. Continuing our concept of reducing plastic waste, the spool can also be reused with other Bambu refills.
Bambu PET-CF isn't compatible with AMS

Model Overview

	PET-CF	PAHT-CF
Composition	PET, carbon fiber	PA 12 and other long-chain PA, carbon fiber
Hotend Compatibility	Hardened Steel 0.6 (recommended), 0.4, 0.8 mm
Build Plate Compatibility	Engineering Plate, High Temperature Plate, Textured PEI Plate
Glue	Glue Stick / Liquid Glue	Glue Stick
AMS Compatibility	No	Yes
Print Speed	<100 mm/s
Toughness (Impact Strength - XY)	36.0 kJ/m²	57.5 kJ/m²
Strength (Bending Strength - XY)	131 MPa	125 MPa
Stiffness (Bending Modulus - XY)	5320 MPa	4230 MPa
Layer Adhesion (Impact Strength - Z)	4.5 kJ/m²	13.3 kJ/m²
Heat Resistant (HDT, 0.45 MPa)	205 ℃	194 ℃
Saturated Water Absorption Rate / % (25 ℃, 55% RH)	0.37	0.88

Recommended Printing Settings
Drying Settings (Blast Drying Oven)	80 ℃, 8 - 12 h
Printing and Keeping, Container's Humidity	<20% RH (Sealed, with Desiccant)
Nozzle Temperature	260 - 290 ℃
Bed Temperature (with Glue)	80 - 100 ℃
Printing Speed	< 100 mm/s
Physical Properties
Density	1.29 g/cm³
Vicat Softening Temperature	226 ℃
Heat Deflection Temperature	205 ℃
Melting Temperature	250 ℃
Melt Index	25.3 ± 2.5 g/10 min
Mechanical Properties
Tensile Strength	74 ± 6 MPa
Breaking Elongation Rate	4.5 ± 1.2 %
Bending Modulus	5320 ± 270 MPa
Bending Strength	131 ± 6 MPa
Impact Strength	36.0 ± 2.7 kJ/m²

Extended Specifications

Package Contents

Filament x 1 & Desiccant x 1
Package x 1
Filament Label x 1

Features

Low moisture absorption

In saturated water absorption conditions, the strength and stiffness of PET-CF have small losses, making it suitable for prints used in high humidity environments.

High dimensional stability

Due to the creep and warping resistance of PET-CF, prints can achieve excellent matching accuracy.

Exceptional thermal resistance

PET-CF exhibits the highest thermal resistance compared to other filaments such as ABS, PETG, PLA, PA-CF, and PC.

FAQs

Q: What is the difference between PET-CF and PETG-CF?
A: The primary difference between PET-CF and PETG-CF lies in their base material. PETG-CF is a reinforced material made by adding carbon fiber to glycol-modified polyethylene terephthalate (PETG), while PET-CF is to polyethylene terephthalate (PET). The key difference 'G' in PETG stands for glycol. PETG is a glycol-modified version of PET that contains small amounts of glycol as a co-monomer. The addition of glycol to PETG reduces its crystallinity and makes it more transparent. However, it also reduces its strength and stiffness.

Q: The difference in application between PETG-CF and PET-CF?
A: PETG-CF is a versatile basic material that is suitable for printing everyday items, such as bent, folded, and movable parts, due to its excellent toughness and ease of printing. PET-CF, in contrast, contains a greater amount of carbon fiber and is significantly stronger and more temperature resistant compared to PETG-CF. PET-CF is a professional-grade engineering material that is suitable for use in more complex and demanding environments.

Q: What is PET-CF used for?
A: Due to its dimensional stability and lower water absorption rate, PET-CF is a better choice than nylon for printing functional parts used in high humidity environments. Also, its high-temperature resistance and low warping make it suitable for printing mechanical assembly parts, such as automotive accessories and fixtures.
