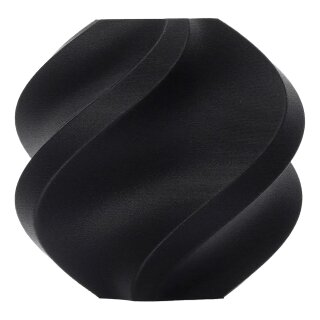

Bambu Lab PLA-CF Filament on Spool 14100 Black

Bambu Lab PLA-CF Filament on Spool 14100 Black

Artno.: BL5-014100
GTIN: 6975337031758
Manufacturers:

Carbon Fiber Reinforced PLA, Carbon Fiber Texture and Minimized Layer Lines, Improved Mechanical Properties, Stablized Printing Dimension, Diameter 1.75mm +/- 0.03 mm, AMS Compatible, RFID

Variant: 38,90 €14100 Black

38,90 €14101 Lava Gray

38,90 €14200 Burgundy Red

38,90 €14500 Matcha Green

38,90 €14600 Jeans Blue

38,90 €14601 Royal Blue

38,90 €14700 Iris Purple

38,90 €

incl. 19% VAT

(32,69 € excl. VAT)

plus

On stock

Bambu PLA-CF is carbon fiber reinforced PLA with improved stiffness and strength. PLA-CF is easy to print and beginner-friendly like regular PLA. It is AMS compatible with low clogging risk at high-speed printing. The prints are in matte finish with almost invisible layer lines, which make it suitable for printing general engineering parts or models requiring a better appearance, like bike frames, brackets and toys. Additionally, Bambu PLA-CF features low shrinkage and warping resistance to achieve a perfect matching accuracy between prints parts.

Printing Tips

Recommended Build Plate: Cool Plate, High Temperature Plate, or Textured PEI Plate
Recommended Hotend: Hardened Steel Nozzle (0.4 / 0.6 / 0.8 mm)
Drying conditions: 55℃ for 8 hrs. Store in a dry environment after use. Dry before use if the material absorbs moisture. For more details please refer to: Filament drying instructions on Bambu Lab Wiki.
Feel free to reuse your Bambu Reusable Spool. Bambu Lab has designed the entire filament feeding system around a reusable spool concept, reducing plastic waste in filament consumption by at least 20%.
All printing parameters are embedded in RFID, accessible through Bambu Lab AMS (Automatic Material System). Load and print! No more tedious setup steps.

Model Overview

Color	Hex Code	Display
Burgundy Red	#951E23
Matcha Green	#5C9748
Jeans Blue	#6E88BC
Royal Blue	#2842AD
Iris Purple	#69398E
Lava Gray	#4D5054
Black	#000000

Recommended Printing Settings
Drying Settings (Blast Drying Oven)	55 ℃, 8 h
Printing and Keeping, Container's Humidity	<20% RH (Sealed, with Desiccant)
Nozzle Temperature	210 - 240 ℃
Bed Temperature (with Glue)	35 - 45 ℃
Printing Speed	< 200 mm/s
Physical Properties
Density	1.22 g/cm³
Vicat Softening Temperature	69 ℃
Heat Deflection Temperature	55 ℃
Melting Temperature	165 ℃
Melt Index	3.7 ± 0.6 g/10 min
Mechanical Properties
Tensile Strength	38 ± 4 MPa
Breaking Elongation Rate	8.4 ± 3.2 %
Bending Modulus	3950 ± 190 MPa
Bending Strength	89 ± 4 MPa
Impact Strength	23.2 ± 3.7 kJ/m²

Extended Specifications

Package Contents

Filament x 1 & Desiccant x 1
Package x 1
Filament Label x 1

Features

Carbon Fiber Texture

Minimal Layer Lines

Matte Finish

Compatibility

Bambu PLA-CF could be paired with any PLA series filament to make your prints more colorful and achieve various texture requirements.

Stablized printing dimension

Bambu PLA-CF features low shrinkage and warping resistance to achieve a perfect matching accuracy between prints parts.

Minimal effort in support removal

Bambu PLA-CF is designed to support itself. It can be removed more easily compared to regular PLA, and still maintains a smooth support surface.

Not prone to clogging in high-speed printing

Bambu PLA-CF is just as easy to print as regular PLA. It can be printed smoothly and consistently at high speed without clogging.

Improved mechanical properties

Bambu PLA-CF exceeds the mechanical properties of PLA Matte in XY Bending Strength, Z Bending Strength, XY Bending Modulus, Z Bending Modulus, XY Impact Strength, and Z Impact Strength by between 20% and 115%, making it more suitable for printing models with higher strength requirements.

More Features

Shipping weight:	1,40 kg
