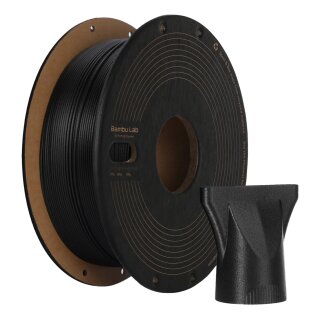

Bambu Lab PPA-CF Filament on Spool
Artno.: BL5-673100-P
Strength comparable to metal, industrial-grade precision, consistent performance in humid conditions, exceptional performance at high temperatures, compatible with a wide range of printers, diameter: 1.75 mm ± 0.05 mm, NOT compatible with AMS or AMS Lite
Variant
105.00 € incl. 19% VAT
88.24 € excl. VAT
Out of stock

Please select a model.

Description

Bambu PPA-CF is a premium fiber-reinforced nylon that provides industrial-grade printing quality with precise 1:1 reproduction. Recognised for its exceptional mechanical properties and reliable performance in humid and high-temperature environments, Bambu PPA-CF is ideal for a wide range of engineering applications, from mechanical prototypes to automotive components. Its broad compatibility with various printers sets a new benchmark for professional engineering filaments, enabling you to harness its full potential to bring your designs to life!

Bambu PPA-CF is compatible with P1S, X1C, and X1E printers, requiring only an enclosure and a hardened steel nozzle. This filament is surprisingly easy to use, printing smoothly at nozzle temperatures between 280°C and 310°C.

Note: PPS-CF is NOT compatible with AMS or AMS Lite.

Key Features

  • Strength comparable to metal
  • Precision that meets industrial standards
  • Consistent performance in humid conditions
  • Outstanding reliability in high temperatures

Printing Tips

Drying Recommendations:

  • Drying Temperature:
    • In a blast drying oven: 100°C to 140°C for 8 to 12 hours.
    • On an X1 printer's heatbed: 110°C to 120°C for 10 to 12 hours (less effective than a blast drying oven).

    Important Note: Higher temperatures within the drying range yield better results, but do not exceed 160°C to avoid damaging the spool.

    Additional Information: For more details, refer to the Printing Tips for Engineering Materials on the Bambu Lab WIKI.

Storage Tips:

  • Storage Condition: To prevent the filament from absorbing moisture, use an airtight storage container with desiccant during printing.
  • For Further Details: Please refer to the Printing Tips for Engineering Materials on the Bambu Lab WIKI.

Annealing Prints:

  • If you need to anneal the prints, please consult the Technical Data Sheet (TDS) and the Bambu Lab WIKI section on Work After Printing Finished.

Interface Layer:

  • To prevent the filament from damaging the printing surface and to enhance model adhesion, apply a thin coat of glue stick for optimal results.

Model Overview

Bambu PA6-CF Bambu PAHT-CF Bambu PPA-CF
Heat Deflection Temperature / ℃ (0.45 MPa) 186 ℃ 194 ℃ 227 ℃
Stiffness (Bending Modulus - XY, Dry State) 5460 MPa 4230 MPa 9860 MPa
Stiffness (Bending Modulus - XY, Wet State) 3560 MPa 3640 MPa 9620 MPa
Decline Rate of Stiffness 34.8% 13.9% 2.4%
Strength (Bending Strength - XY, Dry State) 151 MPa 125 MPa 208 MPa
Strength (Bending Strength - XY, Wet State) 95 MPa 115 MPa 202 MPa
Decline Rate of Strength 37.1% 8.0% 2.9%
Saturated Water Absorption Rate (25 ℃, 55% RH) 2.35% 0.88% 1.30%

Note: Information on Testing Samples in Both Dry and Wet Conditions. Dimension is 80 * 10 * 4 mm3, Sparse Fill Pattern is Concentric, Sparse Fill Density is 100%.

The performance of prints depends not only on the printer and printing temperature but also on the product's orientation (XY direction is significantly better than the Z direction), wall loops, sparse infill pattern, sparse infill density, size, structure, shape, and other factors.

Recommended Printing Settings for PPA-CF
Drying Settings (Blast Drying Oven) 100 - 140 ℃, 8 - 12 h
Printing and Keeping, Container's Humidity <20% RH (Sealed, with Desiccant)
Nozzle Temperature 280 - 310 ℃
Bed Temperature (with Glue) 100 - 120 ℃
Printing Speed < 100 mm/s
Physical Properties
Density 1.25 g/cm³
Vicat Softening Temperature 232 ℃
Heat Deflection Temperature 227 ℃
Melting Temperature 258 ℃
Melt Index 8.4 ± 0.7 g/10 min
Mechanical Properties
Tensile Strength 168 ± 4 MPa
Breaking Elongation Rate 3.2 ± 0.4 %
Bending Modulus 9860 ± 480 MPa
Bending Strength 208 ± 6 MPa
Impact Strength 41.7 ± 2.8 kJ/m²

Package Contents

  • Filament x 1 & Desiccant x 1
  • Package x 1

Features

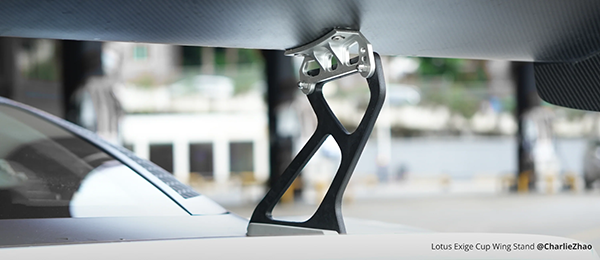

Metal-Like Strength
PPA-CF offers strength approaching metal levels, being 48% stronger and 102% stiffer than normal PA6-CF. This filament excels in mechanical properties, making it ideal for high-performance engineering applications. Perfect for repairs, it can effectively replace automotive and industrial parts with exceptional durability and reliability.

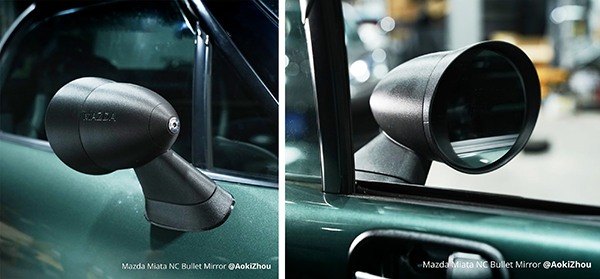

Industrial-Grade Precision
Achieve industrial-grade precision with Bambu PPA-CF. Its superior dimensional stability ensures that your high-precision prototypes match your design drawings exactly, without warping or deformation. Rely on PPA-CF for the accuracy you need in every project.
Stable Performance in Humid Conditions
Bambu PPA-CF supports long-term, stable use in humid environments, even underwater. With a moisture absorption rate 66% lower than normal PA6-CF, it maintains its stiffness and thermal properties over time. Whether printing propellers, customizing surfboards, or any other water-resistant application, PPA-CF delivers reliable performance.

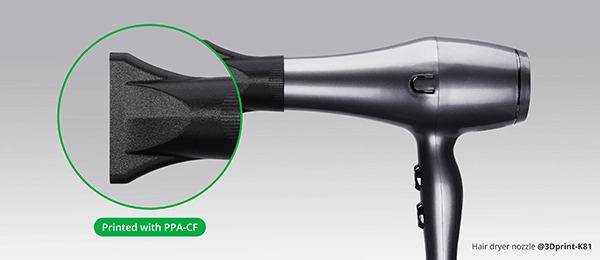

Unmatched Performance Under High Temperatures
Bambu PPA-CF boasts unmatched heat resistance, capable of withstanding prolonged exposure to temperatures up to 227℃ without compromising its structural integrity or performance. This filament remains reliable and robust in extreme environments, making it perfect for industrial, mechanical, or automotive parts that must tolerate ultra-high temperatures.
