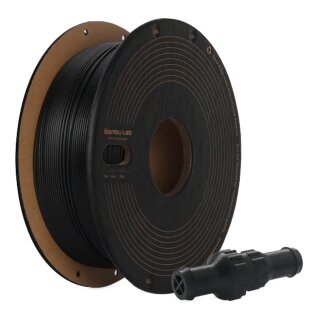

Bambu Lab PPS-CF Filament on Spool
Artno.: BL5-676100-P
Ultra-high heat resistance, top-tier flame retardancy, peerless mechanical properties, solvent and chemical resistance, ultra-low water absorption, comes with a cardboard spool, diameter: 1.75 mm +/- 0.05 mm, for X1E printing ONLY, AMS & AMS lite NOT Compatible
Variant
133.00 € incl. 19% VAT
111.76 € excl. VAT
Out of stock

Please select a model.

Description

PPS-CF is a composite material made from carbon fiber-reinforced polyphenylene sulfide. The combination of PPS resin and carbon fiber gives PPS-CF exceptional properties, including excellent resistance to solvents, corrosion, heat, and flames. Additionally, it offers superior strength, stiffness, and dimensional stability, making it a specialized engineering plastic that meets the demands of unique and challenging applications.

Note: PPS-CF is for X1E printing only. The filament is also not compatible with AMS or AMS Lite.

Key features

  • Ultra-High Heat Resistanse
  • Top-Tier Flame Retardant Properties
  • Peerless Mechanical Properties
  • Solvent and Chemical Resistance
  • Ultra-Low Water Absorption

Ultra-High Heat Resistance

PPS-CF boasts a heat deflection temperature of up to 264℃ under 0.45 MPa and can continuously operate at temperatures exceeding 200℃. This significantly outperforms normal PA-CF materials, which have maximum temperatures around 190°C and 120℃. Its exceptional heat resistance ensures outstanding creep resistance, making PPS-CF ideal for demanding industrial environments and applications.

Filament Type PLA Basic ABS PC Normal PA-CF PA6-CF PET-CF PPA-CF PPS-CF
Heat Deflection Temperature / °C (0.45 MPa) 57 °C 87 °C 117 °C 184 °C 186 °C 205 °C 227 °C 264 °C

Superior Flame Retardancy

PPS-CF achieves a UL-94 V-0 flame retardant rating, offering superior safety and reliability in critical areas such as electronics and automotive components. PPS-CF provides long-lasting durability and peace of mind even in the most demanding environments.

Unmatched Mechanical Properties

Combining the stiffness of PPS polymers with the reinforcing power of carbon fiber, PPS-CF offers exceptional stiffness, bending strength, and tensile strength. Its superior dimensional stability and resistance to warping ensure that large-scale prints maintain precision and avoid deformation during the printing process, making it perfect for high-precision applications.

PET-CF PPS-CF Improved %
Stiffness (Bending Modulus - XY, Dry State) 5320 MPa 7160 MPa 34.59%
Strength (Bending Strength - XY, Dry State) 131 MPa 142 MPa 8.40%

Ultra-Low Water Absorption

With an extremely low moisture absorption rate of just 0.05%, PPS-CF ensures that its mechanical and thermal properties remain stable even in humid conditions. Unlike normal PA-CF, which can soften and degrade when exposed to moisture, PPS-CF maintains its strength and durability, making it the superior option for applications requiring high moisture resistance.

Accessory Compatibility

Recommended Not Recommended
Build Plate Smooth PEI Plate / Textured PEI Plate Cool Plate
Hotend Hardened Steel 0.4mm / 0.6mm (recommended) / 0.8 mm Hotend with Stainless Steel Nozzle (all size)
Hotend with Hardened Steel Nozzle (0.2 mm)
Glue Bambu Glue Stick Bambu Liquid Glue
AMS & AMS lite / AMS & AMS lite

Printing Tips

Bambu PPS-CF Printing Guidelines:

  • Nozzle Temperature: Recommended range is 310 to 340°C.
  • Chamber Temperature: Recommended range is 60 to 90°C.
  • Tip: Using higher values within these ranges can enhance the mechanical properties of the printed parts, especially in the Z-direction.

Drying Recommendations:

  • Drying Temperature:
    • In a blast drying oven: 100°C to 140°C for 8 to 12 hours.
    • On an X1 printer's heatbed: 110°C to 120°C for 10 to 12 hours (less effective than a blast drying oven).
  • Important Note: Higher temperatures within the drying range yield better results, but do not exceed 160°C to avoid damaging the spool.
  • Additional Information: For more details, refer to Printing tips for Engineering materials on Bambu Lab WIKI.

Storage Tips:

  • Storage Condition: To prevent the filament from absorbing moisture, use an airtight storage container with desiccant during printing.
  • For Further Details: Please refer to Printing tips for Engineering materials on Bambu Lab WIKI.

Annealing Prints:

  • If you need to anneal the prints, please refer to the Technical Data Sheet (TDS) and the WIKI section Work After Printing Finished on Bambu Lab.

Model Overview

PPS-CF PET-CF PA6-CF
Composition Polyphenylene sulfide (PPS), Carbon Fiber Polyethylene terephthalate (PET), Carbon Fiber Nylon6 (PA6), Carbon Fiber
AMS & AMS lite Compatibility Not Compatible
Dry before Use Required
Sealed during Printing Sealed with desiccant
Printer Type Enclosed Enclosed (Recommended) / Open-frame Enclosed
Nozzle Hardened Steel 0.6 mm (recommended) / 0.4 mm / 0.8 mm
Nozzle Temperature 310 - 340 ℃ 260 - 300 ℃ 260 - 300 ℃
Bed Temperature 100 - 120 ℃ 80 - 110 ℃ 100 - 110 ℃
Toughness (Impact Strength - XY, Dry State) 27.8 kJ/m² 36.0 kJ/m² 40.3 kJ/m²
Toughness (Impact Strength - XY, Wet State) 27.8 kJ/m² 37.3 kJ/m² 57.2 kJ/m²
Strength (Bending Strength - XY, Dry State) 142 MPa 131 MPa 151 MPa
Strength (Bending Strength - XY, Wet State) 142 MPa 127 MPa 95 MPa
Layer Strength (Bending Strength - Z, Dry State) 36 MPa 49 MPa 80 MPa
Layer Strength (Bending Strength - Z, Wet State) 36 MPa 46 MPa 45 MPa
Stiffness (Bending Modulus - XY, Dry State) 7160 MPa 5320 MPa 5460 MPa
Stiffness (Bending Modulus - XY, Wet State) 7160 MPa 5240 MPa 3560 MPa
Layer Adhesion (Impact Strength - Z, Dry State) 2.8 kJ/m² 4.5 kJ/m² 15.5 kJ/m²
Heat Resistance (HDT, 0.45 MPa, Dry State) 264 ℃ 205 ℃ 186 ℃
Saturated Water Absorption Rate (25 °C, 55% RH) 0.05% 0.37% 2.35%
Recommended Printing Settings for PPS-CF
Drying Settings before Printing 100 - 140 ℃, 8 - 12 h
Printing and Keeping, Container's Humidity <20% RH (Sealed, with Desiccant)
Nozzle Temperature 310 - 340 ℃
Bed Temperature (with Glue) 100 - 120 ℃
Printing Speed < 100 mm/s
Physical Properties
Density 1.26 g/cm³
Vicat Softening Temperature 268 ℃
Heat Deflection Temperature 264 ℃
Melting Temperature 284 ℃
Melt Index 11.48 ± 1.23 g/10 min
Mechanical Properties
Tensile Strength 87 ± 5 MPa
Breaking Elongation Rate 1.2 ± 0.4 %
Bending Modulus 7160 ± 280 MPa
Bending Strength 142 ± 5 MPa
Impact Strength 27.8 ± 2.3 kJ/m²
