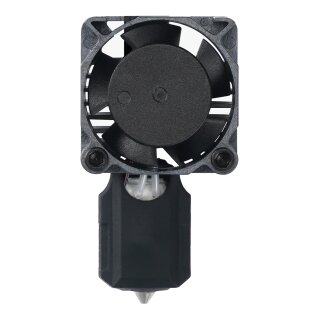

Bambu Lab X1-Carbon Hotend Assembly Hardened Steel 0.8mm
Description
Complete Bambu Hotend Assembly includes:
- Hotend with Nozzle
- Hotend Cooling Fan
- Silicone Sock
- Ceramic Heater
- Thermistor
- Retaining Clip
If you need to swap your nozzle, you can either replace the Hotend with Nozzle on your original complete hotend assembly or replace the whole Complete Hotend Assembly. The 0.4mm nozzle is widely recognized as the standard nozzle diameter for modern 3D printers due to its optimal balance between print quality and print speed. This nozzle size is utilized in both the Bambu Lab X1 Series and P1 Series 3D printers.
Note
- Filaments with carbon fiber, glass fiber, metal, or other inorganic particles are prone to clog a 0.2 mm nozzle.
- For filaments containing carbon fiber or glass fiber, it is highly recommended to use a hardened steel 0.6 mm nozzle to minimize the risk of clogging and abrasion.
- Bambu PLA-CF and Bambu PETG-CF have been extensively tested and proven to have a low risk of clogging when printed with a hardened steel 0.4 mm nozzle, while also achieving higher print quality.
Model Overview
| 0.2 mm Nozzle | 0.4 mm Nozzle | 0.6 mm Nozzle | 0.8 mm Nozzle | |
|---|---|---|---|---|
| Print Quality | 5 out of 5 | 4 out of 5 | 2 out of 5 | 1 out of 5 |
| Print Speed | 1 out of 5 | 4.5 out of 5 | 4 out of 5 | 5 out of 5 |
| Clogging Resistance | 1 out of 5 | 4.5 out of 5 | 5 out of 5 | 5 out of 5 |
| Suitable Prints | Miniature models, Texts, Molds | Toys, Mechanical parts | Large structural parts, Functional parts for household, Industrial or engineering parts | |
| Filament Compatibility | |||||
|---|---|---|---|---|---|
| 0.2 mm Nozzle | 0.4 mm Nozzle | 0.6 mm Nozzle | 0.8 mm Nozzle | Hardened Steel Required? | |
| General PLA | Optional | ||||
| PLA Sparkle | * | Optional | |||
| PLA Marble | * | Optional | |||
| Wood/Rock/Metal-filled PLA | * | Optional | |||
| PETG | Optional | ||||
| PVA | Optional | ||||
| ABS | Optional | ||||
| ASA | Optional | ||||
| PC | Optional | ||||
| PA | * | Optional | |||
| TPU | * | Optional | |||
| Bambu PLA-CF | * | *Highly Recommended |
*Required | ||
| Bambu PETG-CF | * | *Highly Recommended |
*Required | ||
| Bambu PAHT-CF | * | *Highly Recommended |
*Required | ||
| Bambu PET-CF | * | *Highly Recommended |
*Required | ||
| * | Not Recommended | *Required | |||
Package Contents
- Complete Hotend Assembly
- M3-14 Step Screws * 2
| Shipping weight: | 0.40 Kg |
