Description

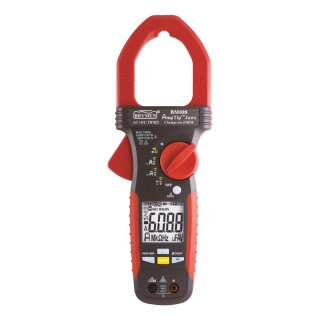

The new Brymen BM080 series are high-end current clamps multimeters. A highly rugged housing, measuring ranges up to 1000V / 1000A and a classification according to CAT III 1000V / CAT IV 600V make the meters suitable for harsh professional field-use. Globally multi-patented measurement technology with a resolution of 6000 counts and a high basic accuracy (0.8% voltage AC/DC, 1.5% current AC/DC) guarantees precise measurement results.
The current clamp with Brymen-specific AmpTip technology allows precise current measurement even for thin conductors and small currents with a dedicated, specially calibrated range. Comprehensive measurement features, such as PEAK-RMS and CREST modes for reliable measurement of inrush and peak currents, simplify everyday work and provide stable readings. Complete multimeter functionality for measuring frequency, resistance, capacitance, diodes and an integrated LED working light makes the BM080 series an indispensable companion.
Model Overview
| Base Specifications | BM088 | BM089 | |
|---|---|---|---|
| Resolution (Counts) | 6,000 | ||
| Basic accuracy | Voltage | 0.8 % | |
| Current | 1.5 % | ||
| Specified bandwidth | 400 Hz | ||
| Update rate | 5 rdgs/s | ||
| Safety | BM088 | BM089 | |
|---|---|---|---|
| Measurement category
Independently verified according to IEC/UL/EN61010
|
CAT IV | 600 V | |
| CAT III | 1000 V | ||
| Overload protection
On all inputs in all ranges
|
Continuous | 1000 V | |
| Surge | 8 kV | ||
| Measurement Ranges | BM088 | BM089 | |
| Auto Ranging | |||
| True RMS | AC+DC | ||
| Current (clamp-on) | DC, AC, DC+AC | ||
| DCµA | |||
| AmpTip
Calibrated range for thin conductors at jaw-tip
|
|||
| Voltage | DC, AC, DC+AC | ||
| Frequency, resistance, capacitance, diode test | |||
| 3Φ phase rotation
Phase rotation on three-phase systems
|
|||
| Temperature | |||
| Electric field (EF) detection
Non-contact (NCV) or probe-contact
|
|||
| Advanced Features | BM088 | BM089 | |
| Backlit display | |||
| Integrated LED flashlight | |||
| MIN/MAX/AVG recording
Auto Ranging
|
|||
| Relative mode
Auto Ranging, with DC-Zero mode on DCA and DC+ACA ranges
|
|||
| Data Hold | |||
| Peak/Crest modes
for measuring inrush and peak currents
|
80ms PEAK-RMS | ||
| 5ms CREST | |||
Included in Delivery
- Current clamp multimeter
- Soft carrying pouch
- User manual
- Highly flexible silicone test leads with extra-sharp, gold-plated probes and screw-on banana plugs (BL21S2-T4SC)
| Shipping weight: | 0.90 Kg |
