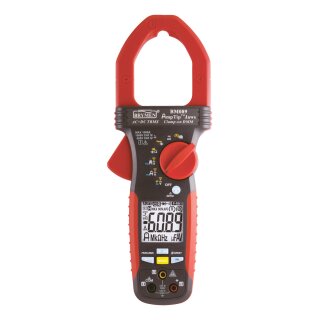

Brymen BM089 Current Clamp Multimeter

Artno.: 101834
GTIN: 4251459236014
Manufacturers: Brymen

Current clamp multimeter with AmpTip technology, 3 5/6 digits (6,000 counts), basic precision 0.8%/1.5% voltage/current, Auto Ranging, AC+DC True RMS, backlit display, three-phase measurement, multimeter functions (resistance, capacity, diode test, continuity, temperature), LED light, non-contact voltage detection (NCV)

from

145,00 €

incl. 19% VAT

(121,85 € excl. VAT)

On stock

Configure + Buy

Calibration

ISO Calibration: 109,00 € Item details

Quantity: 1

Brymen Current Clamp Multimeters DAkkS Calibration

DAkkS Calibration: 119,00 € Item details

Quantity: 1

Your configuration

incl. 19% VAT

(121,85 € excl. VAT)

The new Brymen BM080 series are high-end current clamps multimeters. A highly rugged housing, measuring ranges up to 1000V / 1000A and a classification according to CAT III 1000V / CAT IV 600V make the meters suitable for harsh professional field-use. Globally multi-patented measurement technology with a resolution of 6000 counts and a high basic accuracy (0.8% voltage AC/DC, 1.5% current AC/DC) guarantees precise measurement results.

The current clamp with Brymen-specific AmpTip technology allows precise current measurement even for thin conductors and small currents with a dedicated, specially calibrated range. Comprehensive measurement features, such as PEAK-RMS and CREST modes for reliable measurement of inrush and peak currents, simplify everyday work and provide stable readings. Complete multimeter functionality for measuring frequency, resistance, capacitance, diodes and an integrated LED working light makes the BM080 series an indispensable companion.

Model Overview

Erweiterte Spezifikationen

Base Specifications		BM088
Resolution (Counts)		6,000
Basic accuracy	Voltage	0.8 %
Basic accuracy	Current	1.5 %
Specified bandwidth		400 Hz
Update rate		5 rdgs/s

Safety		BM088	BM089
Measurement category Independently verified according to IEC/UL/EN61010	CAT IV	600 V
	CAT III	1000 V
Overload protection On all inputs in all ranges	Continuous	1000 V
Overload protection On all inputs in all ranges	Surge	8 kV
Measurement Ranges		BM088	BM089
Auto Ranging
True RMS	AC+DC
Current (clamp-on)	DC, AC, DC+AC
Current (clamp-on)	DCµA
AmpTip Calibrated range for thin conductors at jaw-tip
Voltage	DC, AC, DC+AC
Frequency, resistance, capacitance, diode test
3Φ phase rotation Phase rotation on three-phase systems
Temperature
Electric field (EF) detection Non-contact (NCV) or probe-contact
Advanced Features		BM088	BM089
Backlit display
Integrated LED flashlight
MIN/MAX/AVG recording Auto Ranging
Relative mode Auto Ranging, with DC-Zero mode on DCA and DC+ACA ranges
Data Hold
Peak/Crest modes for measuring inrush and peak currents	80ms PEAK-RMS
Peak/Crest modes for measuring inrush and peak currents	5ms CREST

Included in Delivery

Current clamp multimeter
Soft carrying pouch
User manual
Highly flexible silicone test leads with extra-sharp, gold-plated probes and screw-on banana plugs (BL21S2-T4SC)
Snap-on alligator clips (BAC3)
Type-K temperature probe (BKP-60)

Shipping weight:	0,75 kg
