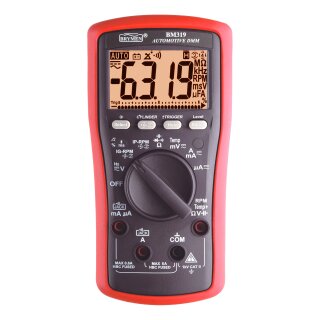

Brymen BM319s Multimeter
Description
BM319 is a professional multimeter designed for the automotive industry, offering an optimal combination of size and functionality. Beyond standard multimeter functions such as measuring voltage, current, continuity, and resistance, the BM319s also supports diode testing and temperature measurements.
Model Overview
| Display | 6000 counts, Backlighted |
|---|---|
| Sampling | 5x/s |
| Accuracy (DCV) | 0.5% + 3d |
| Function & Features | Automotive multimeter |
| Basic Measurement | ACA, ACV, DCA, DCV |
| Other Measurements (Max Range) | Capacitance, Continuity, Resistance, Temperature |
| Special Features |
Selectable 4-stroke, 4-DIS/2-stroke, & 2-DIS-engine RPM Selectable Trig(+)/Trig(-) on % and ms readings Selectable Sensitivity-Levels on RPM, Dwell, % and ms reading Beep-Jack™ - beeps against improper terminal plug in (decreases risk of damage) Cylinder - selection of 1 to 12 cylinders IP-RPM readings - inductive pick-up rpm test on spark-plug ignition HV wires DWELL-Angle and %- Duty - test conventional engines, user-selectable sensitivities ms-FUEL Injection Detector - test both TBI & TFI engines, user-selectable sensitivities Type K - temperature measurement |
| Special Functions | HOLD |
| Overload Protection | 1000V |
| Surge Protection | 6kV |
| Measurement Category (Safety) | CAT II |
| Category Voltage | 1000V |
| Standard Accessories | Battery installed, BKP60 K-type thermocouple, BP300 Inductive pickup clip, Gold-plated test leads (pair), User's manual |
| Optional Accessories | BMH-01 Magnetic hanger |
| Dimensions (H x W x D) | 161 x 80 x 50 mm |
| Weight | 252g |
| Shipping weight: | 0.58 Kg |
