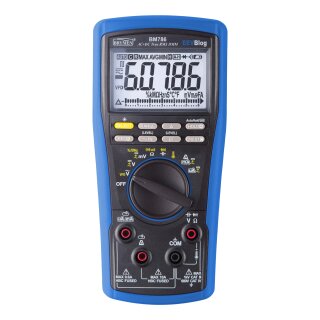

Brymen BM786 Multimeter EEVBlog Edition

Artno.: BM1-107868
Digital multimeter (DMM), 4 5/6 Digits, 60 000 Counts, 0.03% Base Accuracy DCV, 0.075% Base Accuracy DCA, Sample Rate 5 Sa/s / 50 Sa/s Bargraph, Single Display / Paperwhite Backlight, EF Measurement, Temperature Measurement
from 169.00 € incl. 19% VAT
142.02 € excl. VAT

Free shipping within Germany

50+ On stock

Shipping time: 1 - 3 business days

Your configuration
Accessories
169.00 € incl. 19% VAT *

Description

The new Brymen BM780 multimeter series combines a high safety class of CAT IV 600V / CAT III 1kV in a robust, compact housing with integrated holster.

The resolution of 60 000 counts, a basic accuracy of 0.03% and the fast measuring rate (measured value 5 rdgs/s, bargraph 50 rdgs/s) enable reliable measurements. Extensive measuring and safety functions make the BM780 series the ideal companion for everyday use.

.

Model Overview

BM789 BM786 BM785
Resolution (Counts) 60 000
Basic Accuracy DCV 0.03 %
DCA 0.075 %
Specified Bandwidth   100 kHz 7 kHz
Update Rate Display 5 rdgs/s
Bargraph 50 rdgs/s
BM789 BM786 BM785
Measurement Class
Independently verified by IEC/UL/EN61010
 CAT IV 600 V
CAT III 1000 V
Overvoltage Protection
For all ranges and inputs
 Continuous 1000 V
Peak 8 kV
Auto Ranging
True RMS DC+AC
Voltage, Current DC, AC, DC+AC
AutoV LoZ
Frequency, Resistance, Capacitance, Diode Test
Temperature (Dual)
EF Measurment
Measurement of electric fields with non-contect voltage detection (NCV) or single probe tip
Backlit Display
MIN/MAX/AVG Recording
Auto Ranging
Relative Measurement
Auto Hold
Peak Hold
BeepJack

Package Contents

  • Device
  • Test Leads
  • User Manual
  • BKP60 Temperature probe (BM786, BM789)
Shipping weight: 0.56 Kg

Product Reviews

Average product review

5 Stars
1
4 Stars
3 Stars
2 Stars
1 Star

Share your experience with other customers:

5 from 5 Absolutely great and accurate

Outstanding quality. High accuracy. Has great ergonomics and usability.Temperature measurement was in correlation with other references and spot on.CREST function works great. MIN/MAX/AVG, frequency check can also be done using MIN/MAX/AVG button,AC+DC measurement was spot on and fast when checking rectifies, DC is very accurate, hold and relative function works really well, AutoHold makes repeated measurements when tracing stable voltage presence a walk in the park. On mV range use of third party AC current clamp on 1mv/A range have yielded very good if not excellent results. The measurement via this clamp of a small current ranging from approximately 10mA(!) (and up to 600mA) was spot on and this really helps to trace small power consumption on AC mains for e.g. Continuity fast, ohms, diodes,capacitance checks are fast and accurate. It has some limitations on mV AC range 600mV (and note it looks like it DC coupled and signal must not be more than 1000mV when measuring otherwise results are not to be used on this range of mV (only) it reflected in manual) Leads could be a bit better - these have no notches on sharp(very) ends and this makes a bit difficult to hook up wires to them when needed for e.g. oscilloscope retracted hooks do not hold well on them, but this is not a big issue and having another pair of leads for these particular measurements situations solves this. Batteries compartment designed seems very well. Meter is very sensitive to EMF around when measuring resistance around 670kOm range this needs to be taken into account, however AutoHold helps and reading is within spec. Can be improved a bit in terms of buttons would be nice to have them highlighted, also would be nice to be able to upgrade firmware yourself, and would be nice to have option between light and just red diode on the meter panel flashing in continuity check etc Overall it absolutely excellent and you can trust the measurements (even with small issues it may have).

, 23.09.2022
