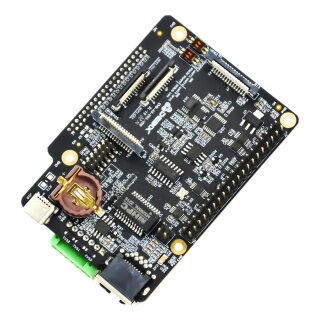

DEBIX Model A I-O Board
Description
Key product features
- Adds one RJ45 1000M network interface and PoE (Compatible with Raspberry Pi) capability to DEBIX Model A
- Series ports (RS232, RS485) and CAN transceiver to allow connection with more industrial equipment
- Integrated real-time-clock (RTC)
Warning: DEBIX I/O board pinout is different to the pinout on the DEBIX Model A board – please consult the documentation
Technical Specifications
| I/O Interfaces | |
| Network | 1 x RJ45 Gigabit Network POE Supported (Compatible with POE power device module) |
| USB | 1 x USB Debug Type-C |
| RTC | 1 x RTC |
| Serial Ports | 1 x RS232
1 x RS485 |
| CAN | 1 x CAN Transceiver |
| DIP Switch | 2 x 2bit DIP Switch (used for selecting USB-Debug, RS232, RS485 and CAN) |
| Expansion | |
| 40-Pin Double-Row Headers | 3 x UART, 2 x I2C, 2 x SPI, 2 x CAN, 6 x GPIO for default, can be reused as I2S, PWM, SPDIF and GPIO through software configuration |
| MIPI CSI | 1 x MIPI CSI |
| MIPI DSI | 1 x MIPI DSI |
| E2PROM | 1 x 2-Kbit E2PROM |
