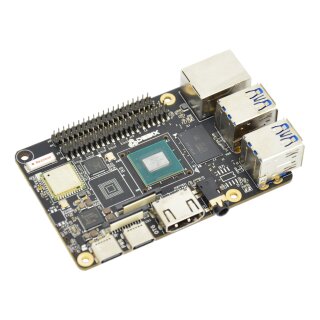

DEBIX Model A Single Board Computer

Artno.: DX1-380448
GTIN: 6974906980008
Manufacturers:

DEBIX Model A is a high-performing industrial single-board computer launched by OKdo Technology and Polyhex Technology. It's ideal for applications in industry 4.0, IoT, smart cities and multimedia. Based on a Quad-core i.MX 8M Plus processor, DEBIX Model A brings you faster speed and powerful performance.

129,00 €

incl. 19% VAT

(108,40 € excl. VAT)

On stock

Description
Product Reviews

Key benefits of DEBIX Model A

Tiny yet powerful processor – DEBIX Model A is based on a powerful Quad-core i.MX 8M Plus processor. With quad-core ARM Cortex-A53 CPU up to 1.8GHz and 2GB/4GB/6GB LPDDR4, it can perform sophisticated processing tasks.
Perfect for multiple industrial applications – ideal for industry 4.0, IoTs, smart cities and multimedia applications. It can be easily integrated into various industrial projects, such as object recognition systems, industrial control and warning systems, truck safety systems, and many more.
Strong performance in extreme environments – the board features industrial-grade components and a wide CPU temperature range of -40°C to 105°C to work stably in extreme environments.
Flexible use with add-on boards – DEBIX Model A I/O and DEBIX Model A LoRa add-on boards offer unlimited possibilities.
AI at its best – integrate the DEBIX Model A into multiple applications using AI to recognize objects, accurately locate positions, and build centralized control and processing systems.
Video encoding & decoding capabilities – the processor features dual cameras, multiple serial ports, and multi-network interaction. Its video encoding & decoding capabilities and network functionalities are ideal for building monitoring systems.

Key product features

Operating system: Android 11, Yocto-L5.10.72_2.2.0 and Ubuntu 20.04 and basic software for fast and direct applications. Download & install the DEBIX operating system.
Connectivity: Gigabit network, 2.4G & 5G Wifi, Bluetooth 5.0, high-speed USB 3.0 and PCIe support connection and control of various industrial peripherals.
Advanced multimedia capabilities: 1080p60 video encode and decode (including H.265, H.264), 3D/2D graphic acceleration, and multiple audio and voice functionalities.
Neural processing unit: Comes with an integrated neural processing unit (NPU) that delivers up to 2.3 TOPS.

Technical Specifications

CPU	NXP i.MX 8M Plus (default), 4 x Cortex-A53, comes with an integrated neural processing unit (NPU) that delivers up to 2.3 TOPS. Industrial grade CPU runs at 1.6GHz, and commercial grade CPU runs at up to 1.8GHz. (i.MX 8M Plus series CPU optional)
Memory	2GB LPDDR4 (4GB/6GB optional)
Storage	Default: Micro SD card (Onboard 8GB/16GB/32GB/64GB/128GB eMMC optional)
Operating System	Android 11, Yocto, Ubuntu
I/O Interfaces	Gigabit Ethernet: 1 x RJ45 with POE power supply (need POE power supply module); 1 x pin header (without network transformer) WIFI & BT: 2.4G & 5G dual-frequency WIFI, BT5.0 USB: 4 x USB 3.0 Host Type-A, 1 x USB 2.0 OTG Type-C Audio: 1 x Headphone and Mic combo port HDMI: 1 x HDMI OUT
Expansion	40 Pin Double-Row Pin Headers: 3 x UART, 2 x I2C, 2 x SPI, 2 x CAN, 6 x GPIO for default, can be reused as I2S, PWM, SPDIF and GPIO through software configuration; 5V power supply, system reset, ON/OFF 1 x LVDS, single & dual channel 8bit, double-row pin headers 1 x MIPI CSI, support 4-lane 24-Pin 0.5mm Pitch FPC socket 1 x MIPI DSI, support 4-lane 24-Pin 0.5mm Pitch FPC socket 1 x PCIe, support PCIe x1, 19-Pin 0.3mm Pitch FPC socket
Power Supply	DC 5V/3A Type-C
Size	85.0 x 56.0mm
CPU Temperature	-40°C to 105°C
