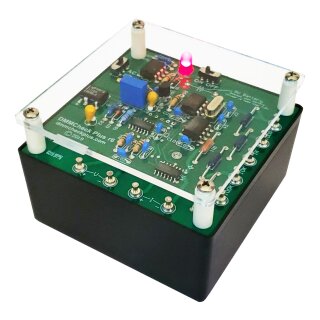

DMMCheck Plus Multimeter Calibration Reference without L/C Option

The DMMCheck Plus is a battery powered instrument that checks seven important functions on a DMM: AC and DC Voltage, AC and DC current, Resistance, Frequency, and Duty Cycle. If you have a DVM or DMM that has questionable accuracy, the DMMCheck Plus can give you the confidence you need before relying on your test equipment. A 9 volt battery pack is included.

The DMMCheck Plus provides the following test circuits:

• Resistance: 100Ω / 1.00 kΩ / 10.0 kΩ / 100 kΩ (±0.1%, 10ppm precision resistors)
• DC voltage: 5V, ± 0.007% voltage reference
• DC current: 1mA, ±0.1% current source
• AC voltage: 5V RMS, bipolar (+5V, -5V) square wave, ±0.1% voltage source
• AC current: 1mA RMS, ±0.2% current source
• Frequency: 100 Hz / 10 kHz, ±0.02% signal source
• Duty Cycle: 100Hz, 5V RMS, signal source has 50% ± 0.05% duty cycle
• Capacitance (with pre-installed L/C option): 1nF / 10nF / 100nF / 1µF (±0,05% precision capacitors)
• Inductance (with pre-installed L/C option): 1µH / 10µH / 100µH / 1mH (±0,05%)

Specifications

• AC/DC voltage output, output resistance : 25Ω, typical*
• Current drain: 5mA, typical*
• Dimensions (no enclosure) : 63,5 x 55,9 mm
• Dimensions (with enclosure): 76 x 76 x 54mm
• Battery: Alkaline 9V block (included)

*) The DMMCheck Plus is calibrated with a 10MΩ load connected to the voltage output terminals when measuring DC; 10MΩ is the typical input resistance of most DMMs when measuring DC Volts. A 1MΩ load is used for AC Volts.

Package Contents

• DMMCheck Plus with enclosure and dual frequency option
• 9V battery pre-installed
• Calibration certificate
• Cushioned packaging

Features

5 VDC and 5 VAC RMS Voltage Reference

The 5V reference voltage is based on the Linear Technology LT1021BCN8-5 buried Zener reference IC. After "aging", the trim potentiometer is carefully adjusted for a reference output of 5.0000V as measured by our calibrated 8.5 digit Keysight 3458A DMM that has an accuracy of 0.0008%. A 0.1% accurate, 5.00VAC RMS, square wave 100Hz voltage source is used to check the AC voltage accuracy of your DMM. The signal is true AC (bi-polar), not pulsed DC. It can also be used to check the compensation of oscilloscope probes.

Focused on Precision

100Ω, 1KΩ, 10KΩ, and 100KΩ 0.1%, 10ppm/⁰C resistors (Vishay type PTF56), connected in series are available to check the resistance function of your DMM. Depending on how you connect your meter leads many different resistance values are available. The resistors are guaranteed accurate within 0.1% of their stated values, but the actual value obtained with a 4-wire (Kelvin) measurement using our HP 3458A (.001% accuracy on Ohms) is provided on the as-measured record.

Calibration Certificate

Each DMMCheck unit comes with a measured-values calibration sheet.
