Description

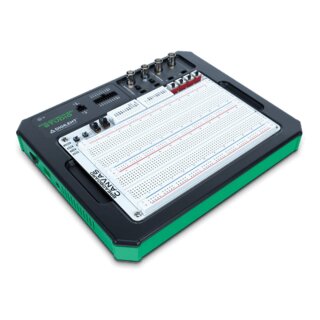

What is the Analog Discovery Studio?
The Analog Discovery Studio is a fully functional, portable test and measurement device that can turn any cross-functional space into a pop-up electronics laboratory.
Equipped with 13 instruments, including an Oscilloscope, Logic Analyzer, Spectrum Analyzer, Waveform Generator, and more.
the Analog Discovery Studio provides an entire stack of bench-top instruments with a convenient, replaceable, and breadboardable interface, perfect for enabling student learning anywhere.
Studio Learning
With lab spaces decreasing and student enrollment increasing, many institutions are choosing studio learning as a supplement to traditional laboratories, creating a need for a portable test and measurement bench that can support all types of circuits projects.
With an Analog Discovery Studio, students can continue their hands-on learning in the library, office hours, a tutoring center, a classroom, at home or even in a coffee shop.
The Analog Discovery Studio supports hands-on learning for any student, and is available with free Mac, Linux, and Windows compatible software, WaveForms.
Portable Design
The Analog Discovery Studio is designed to be a compact alternative to a stack of benchtop equipment.
Its durable enclosure measures 1.25 x 9.25 x 7.5 inches (3.2 x 23.5 x 19.1 cm) and fits on a bench, desktop, or backpack.
Students can access the Oscilloscope and Waveform Generators via breadboardable MTE cables, or industry standard BNC cables, and the Logic Analyzer, Pattern Generator, and Triggers can be accessed via MTE cables.
Circuits or designs can be built on the included, magnetically connected Breadboard Canvas and conveniently swapped out or removed for transit, making the transition from working in the lab to working at home as seamless as possible. The Breadboard Canvas also includes power supply outputs controlled by physical switches, common I/O built-in, and a large breadboardable surface.
The Breadboard Canvas and the cost-optimized Blank Canvas can be purchased separately in the event that an extra is needed, or if the breadboards wear out.
The Analog Discovery 2 is an alternative option to the Analog Discovery Studio if a pocket-sized or USB-powered device is needed.
Included
Analog Discovery Studio:
- Analog Discovery Studio
- Breadboard Canvas
- 15 V 2.4 A power supply
- USB A to B cable
- A set of Analog Discovery Studio MTE Cables
Analog Discovery Studio with BNC probes:
- Analog Discovery Studio
- Breadboard Canvas
- 15 V 2.4 A power supply
- USB A to B cable
- A set of Analog Discovery Studio MTE Cables
- 2x BNC to mini-grabber cables
- 2x BNC to oscilloscope probes
| Shipping weight: | 1.70 Kg |
