Digilent Breadboard Breakout for Analog Discovery

Digilent Breadboard Breakout for Analog Discovery

Artno.: DL1-410373
Manufacturers: Digilent

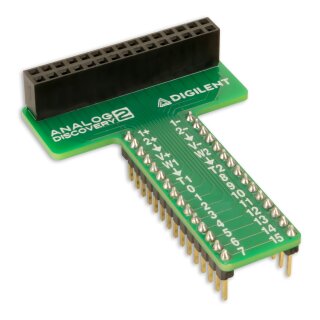

Breadboard Breakout for Analog Discovery. Equipped with one 2x15 female header to connect the Analog Discovery or Ribbon Cable and 30 male pins broken out to fit into a standard breadboard.

11,90 €

incl. 19% VAT

(10,00 € excl. VAT)

plus

On stock (short supply)
Delivery time: 1 - 3 business days (DE - int. shipments may differ)

Description
Product Reviews

MTE cables are a convenient connection method to probe circuits under test with the Analog Discovery, but can be cumbersome when using a breadboard. The Breadboard Breakout is designed to connect all of the inputs and outputs on the Analog Discovery directly to a breadboard.

When switching between circuits, the entire breadboard adapter can be removed or the Analog Discovery can be unplugged from the adapter, leaving the entire circuit intact.

Multiple Breadboard Breakouts can be used to conveniently switch between projects or designs.

The Analog Discovery connects to the Breadboard Breakout directly to the 2x15 pin connector on the top of the breakout, or with the optional 2x15 Ribbon Cable for Analog Discovery.

All of the signals are passed directly through to the Cmod style header to individual nodes in the breadboard.

Included

Digilent Breadboard Breakout for Analog Discovery:

1x Breadboard Breakout for Analog Discovery

Digilent Breadboard Breakout with Ribbon Cable for Analog Discovery:

1x Breadboard Breakout for Analog Discovery
1x Ribbon Cable

Shipping weight:	0,02 kg
