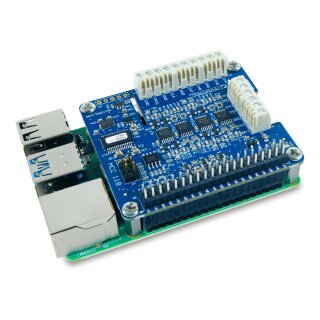

The MCC 118 and MCC 128 DAQ HATs feature eight channels of analog voltage measurement for Raspberry Pi-based data acquisition systems.
Each device has a maximum sample rate of 100 kS/s for taking single point or waveform voltage measurements. Up to eight MCC HATs can be stacked onto one Raspberry Pi - providing up to 64 channels of data and a maximum throughput of 320 kS/s.
MCC 118 features 12-bit resolution and 8 SE analog inputs with a ±10V input range.
MCC 128 features 16-bit resolution and 8 SE / 4 DIFF analog inputs with the following input ranges (±10 V, ±5 V, ±2 V, ±1 V).
All DAQ HATs include C/C++® and Python™ examples and an open-source library. Comprehensive API and hardware documentation are also provided.
There are five devices in the MCC DAQ HAT Series. Models are available with voltage inputs, thermocouple inputs, IEPE-based sensor inputs, analog outputs, and digital I/O allowing users to configure multifunction, Raspberry Pi-based data logger solutions.
Raspberry Pi is not included with the MCC 118/MCC 128.
