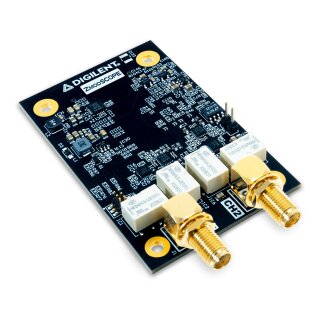

Digilent Zmod Scope 1410

Artno.: DL5-410396
Manufacturers: Digilent

Oscilloscope Module with 14 Bit resolution, 2 channels, bandwidth 70 MHz, sample rate 100 MS/s.

289,00 €

incl. 19% VAT

(242,86 € excl. VAT)

On stock (short supply)
Delivery time: 1 - 3 business days (DE - int. shipments may differ)

Description
Product Reviews

Formerly known as the Zmod ADC 1410: SYZYGY-compatible Dual-channel 14-bit Analog-to-Digital Converter Module.

The Zmod Scope 1410 series is one of Digilent's first SYZYGY-compliant expansion modules. The SYZYGY standard offers a much higher speed/bandwidth digital interface than Pmods, but at a much smaller and lower-cost form-factor than FMC, enabling the user to configure an FPGA development board with the right I/O for their application.

Driven by the SYZYGY carrier, the Zmod Scope can simultaneously acquire two ±25V signals with 14 bits of resolution at a sample rate up to 1125MS/s. Analog inputs can be connected to a circuit using SMA cables.

When coupled to a base board using SYZYGY expansion, like the Eclypse Z7 or Genesys ZU, the combination will serve as a powerful prototyping platform for instrumentation, high-speed control, and SDR .

By utilizing these expansion capabilities, users can spend more time on the analytical and system-level aspects of the solution rather than having to focus on the component-level interactions of the devices.

Shipping weight:	0,05 kg
