Overview

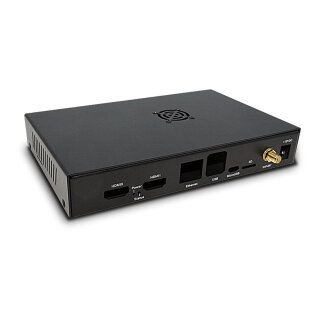

The CM4 IO Smart Case facilitates excellent cooling performance with openings that accommodate the Compute Module 4 IO Board's interfaces like HDMI, USB, and Ethernet. A pushbutton power button is also included for system on/off, comparable to a normal computer.
Key Features
One-Click Switch
One-click switch is to control the system power on and shut off by GPIO3 on 40pin connector & the software running on Compute Module 4, unlike traditional switches which just control the power supply of the board by cutting off or powering on the hardware. Cutting off the power during Compute Module 4 operation may damage the file system and cause the system to crash.
Hardware Protection
The case perfectly fits the mechanicals of the Raspberry Pi Compute Module 4 IO Board, and all interfaces are led out of the enclosure. The metal case provides excellent shielding and protection for Compute Module 4 & IO Board.
Fix Compute Module 4
The four nuts at the bottom of the case can help to fix the Compute Module 4 on IO board & case reliably. If you solely rely on 2x 100pin connectors between the Compute Module 4 and IO Board, the connection won't be reliable in the vibrating environment.
There are four 1.5mm height black nylon washers to support Compute Module 4 on the four corners of PCB. This feature prevents PCB deformation and circuit damage when the Compute Module 4 is screwed on the IO board without something to support.
Cooling Compute Module 4
A 12V/60mA silent fan is installed directly over the Compute Module 4, which is isolated from the case by four silicone washers, these silicone washers greatly reduce the noise magnification by the case.
The fan can reduce the CPU temperature by maximal 20°C and heat generated by the whole system is dissipated by the fan through the slots at the sides of the case.
External Antenna
Raspberry Pi's Official certified 2.4G/5.8GHz WiFi/Bluetooth Antenna installed on the case.
Battery
Offer Philips CR2032 Eco-friendly battery to enable RTC function.
Order Information
| ED |
CM4IOCASE |
| EDATEC |
CM4 IO Smart Case |
Example
| Part#: |
ED-CM4IOCASE |
| Configuration: |
CM4 IO Case with PWM fan & switch |
|
1pcs Raspberry Pi certified Antenna |
|
1pcs Philips CR2032 Lithium Battery |
