Edatec Pi400EXT-R 40pin GPIO Extender for Pi400, Rainbow Cable

Edatec Pi400EXT-R 40pin GPIO Extender for Pi400, Rainbow Cable

Artno.: ED3-304007
Manufacturers:

The 40pin IO Extender supports Raspberry Pi400 and other Raspberry Pi Computers which need to connect 40pin IO signals with daughter boards.

2,90 €

incl. 19% VAT

(2,44 € excl. VAT)

plus

On stock (short supply)

Overview

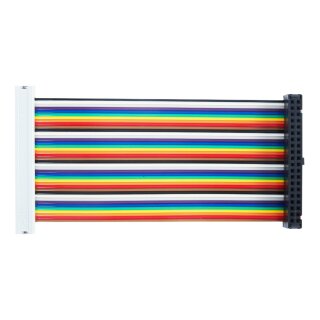

The 40pin GPIO Extender is a 40pin ribbon cable with 100mm length specially designed for Raspberry Pi 400. It is used to lead 40pin GPIO signals from Pi 400 to a female 40pin connector, the user is very easy to connect their daughter to Pi400.

The 40pin black male connector with anti-reverse insertion at one end is to connect 40pin female connector at the back of Pi 400, a 40pin grey female connector at another end are marked the pin# 1,2 & 40 and alignment mark by laser machine, those marks are used to remind the users to insert the daughter board at the right orientation and position. Wrong orientation and misalignment will cause damage of Pi 400 and daughter board.

The ribbon cable are Grey and rainbow color optional. All of materials are used on the cable are RoHS Compliant.

Order Information

ED	Pi400EXT	G
EDATEC	40pin GPIO Extender for Raspberry Pi400	G = Grey colour cable R = Rainbow colour cable

Example

Part#:	ED-Pi400EXT-G
Configuration:	40pin GPIO Extender for Raspberry Pi400, Grey colour

Installation Guide

Insert 40pin black male connector into 40pin female connector at the back of Pi 400. If black male connector can't be inserted into Pi 400, the orientation of the black male connector is wrong, please reverse the cable and re-insert.
Align the pin# of daughter board with the mark on grey 40pin connector, make sure Pin#-1,2 & 40 on daughter is aligned with the mark-“1,2 & 40” on the grey female connector, insert the daughter board into grey connector.
Please double check the orientation of daughter board and position of pin#1,2 & 40 base on the below chart before power on Pi400.
If everything is correct, then power up Pi 400.
