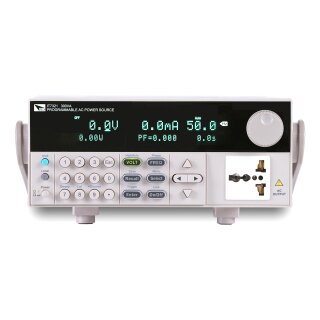

ITECH IT7321 AC Power Source
Description
Model Overview
Extended Specifications
| ITECH IT7321 | |
|---|---|
| Precise Linear Amplification Technology | Low noise, high stability |
| High Power Density Design | 1500VA for 3U size, saves installation space |
| Adjustable Frequency | 45Hz - 500Hz |
| Adjustable Phase Angle | 0° - 360° |
| Settable Output Slew Rate of Voltage and Frequency | Yes |
| High Current Crest Factor for Surge Current Testing | Yes |
| TRIAC Dimmer Dimming / Governor Simulation Function | Yes |
| Output the Changed Synchronous TTL Signal | Yes |
| LIST Mode for Testing Power Perturbation (PLD) Simulation | Yes |
| Simulate Surge, Trap Waveform | Yes |
| Voltage Dip, Short Interruption and Voltage Change Simulation | Yes |
| Measure Various Electrical Parameters | RMS voltage/current, actual power, power factor, VA (apparent power), peak current, and other parameters |
| Measurement Resolution | 0.01W / 0.1mA, meets Energy Star standard requirements |
| Built-in Interfaces | RS-232, USB, and LAN (supports SCPI protocol) |
| Support for Three Devices Connection via System Bus | Achieves three-phase AC power function |
| Protection Features | OCP, OVP, OTP, OPP |
| Shipping weight: | 15.00 Kg |
