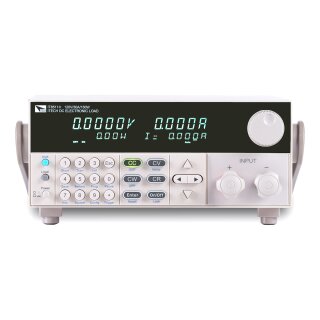

ITECH IT8511A+ Electronic Load
Description
The IT8500+ series single-channel programmable electronic load offers high density, high resolution, and high accuracy. It supports dynamic and automatic test functions, making it suitable for LED driver testing, switching power testing, battery performance testing, and more. The IT8500+ also supports the standard SCPI protocol, enabling the creation of intelligent test platforms for various industries.
Features
- Four operating modes: CV, CC, CR, CP
- Battery test function, automatic test function, OPP test, OCP test function, and CR-LED function
- Dynamic mode up to 10kHz
- Voltage measurement resolution up to 0.1mV / 0.1mA
- Remote sense
- Short circuit function
- Current monitoring function
- Power-off memory function
- 100 groups memory capacity
- Optional USB / RS232 / RS485 interface
*IT8514B+, IT8514C+, and IT8516C+ are built-in RS232 and USB interface.
Model Overview
Extended Specifications
| Model | Voltage | Current | Power | Size |
|---|---|---|---|---|
| IT8511A+ | 150V | 30A | 150W | 1/2 2U |
| IT8511B+ | 500V | 10A | 150W | 1/2 2U |
| IT8512A+ | 150V | 30A | 300W | 1/2 2U |
| IT8512B+ | 500V | 15A | 300W | 1/2 2U |
| IT8512C+ | 120V | 60A | 300W | 1/2 2U |
| IT8512H+ | 800V | 5A | 300W | 1/2 2U |
| IT8513A+ | 150V | 60A | 400W | 1/2 2U |
| IT8513C+ | 120V | 120A | 600W | 1/2 2U |
| IT8514B+ | 500V | 60A | 1500W | 2U |
| IT8514C+ | 120V | 240A | 1500W | 2U |
| IT8516C+ | 120V | 240A | 3000W | 2U |
