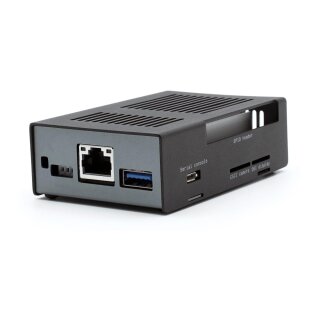

The KKSB Google Coral Dev Board Case is perfect for those that would like to utilise the Google Coral Dev Board within their projects, with emphasis on ease of access for the connections found on the board.
There are openings for all ports on the back (USB 3.0, Ethernet, a 4-Pin stereo terminal), left side (GPIO, micro-USB for serial console, DSI display, CSI2 camera) and right side (HDMI, USB-C data, USB-C Power, headphone jack, micro-SD slot).
The enclosure uses a two-part design, with a simple snap action to fully assemble the two halves. Both sections used are made from anodised aluminium, with the top section further finished using black powder-coating.
The mounting options include two holes on the bottom section that corresponds to a VESA 75mm mount pattern, otherwise, 4 rubber feet keep the case sturdy on flat surfaces. Four screws are used to assemble the Dev Board within the base section of the case.
Features
- Manufactured by KKSB-Cases
- Compatible with Coral Dev Board
- Made of high-grade aluminium
- The black lid is powder-coated aluminium whereas the white bottom is anodized aluminium
- There are rubber feet at the bottom to enhance stability so that you could use the case on any surface
- 2x Holes in the casing are there to support VESA Mount 75mm
- Cutouts for USB 3.0, Ethernet, a 4-Pin stereo terminal, GPIO, micro-USB for serial console, DSI display, CSI2 camera, HDMI, USB-C data, USB-C Power, headphone jack, micro-SD slot
- Dimensions (LxWxH): 115mm x 80mm x 35mm
Note: Fan and board are not included.
