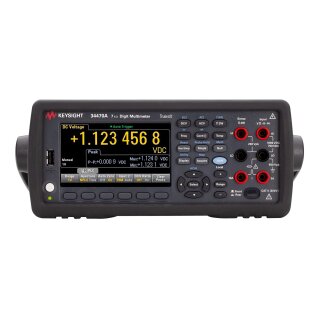

Keysight 34470A Benchtop Multimeter

Artno.: KS1-344701-P

Keysight 34470A Benchtop Multimeter

Truevolt Digital Multimeter (DMM), 7.5 Digits, Counts 10000000, Base Accuracy DCV 0.0016%, Sample Rate 5000 Sa/s / 50000 Sa/s (optional)

Variante

4,788 €werkskalibriert5,478 €ISO-kalibriert

~~5,040.00 €~~ Special Price!

from 4,788.00 € incl. 19% VAT

4,023.53 € excl. VAT

Free shipping

On stock (short supply)

Please select a model.

Description

The newest Truevolt Digital Multimeters (DMMs) from Keysight offer a wide range of measurement features and pricing options, providing improved accuracy, speed, and resolution.

Get Insights Faster

The graphical features of Truevolt DMMs, like trend and histogram charts, give quick access to additional insights. Both models also have a data logging mode for trend analysis and a digitizing mode for capturing transients.

Precisely Measure Low-Power Devices

The ability to measure extremely low currents, within the 1 µA range with picoampere resolution, allows precise measurements on devices with low power consumption.

Maintain Measurement Accuracy

Automatic calibration lets you adjust for temperature changes, ensuring consistent measurement accuracy throughout your workday.

Model Overview

Models	34460A	34461A	34465A	34470A
Digits of resolution	6½	6½	6½	7½
Basic DCV accuracy	75 ppm	35 ppm	30 ppm	16 ppm
Max Reading Rate	300 rdgs/s	1.000 rdgs	10.000 rdgs	50.000 rdgs/s
Memory	1.000 rdgs	10.000 rdgs	50.000 rdgs std 2 million rdgs opt	50.000 rdgs std 2 million rdgs opt

	34460A	34461A	34465A
Measurement
DCV	100 mV to 1.000V
ACV (RMS)	100 mV to 750 V
DC	100 µA up to 3A	100 µA up to 10A	1 µA up to 10A
ACI	100 µA up to 3A	100 µA up to 10A
2- and 4-wire resistance	100Ω up to 100MΩ		100Ω up to 100GΩ
Continuity, diode	Y, 5
Frequency, period	3 Hz to 300 kHz
Temperature	RTD/PT100, thermistor		RTD/PT100, thermistor, thermocouples
Capacitance	1 nF to 100 µF
Dual line display	yes
Display	Color, graphical
Statistical graphics	Histogram, bar meter	Histogram, ar meter, trend Chart
Rear input terminals	No	Yes
IO interface
USB	Yes
LAN/LXI Core	Optional	Yes
GPIB	Optional
