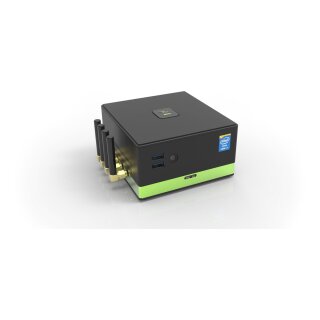

Lime Microsystems LimeNET Mini Software-Defined Radio Platform

This hardware is fully qualified for compatibility with the LimeNET Ubuntu app store. This allows software engineers to create and deploy applications to configure the system for many different applications

Complete with an integrated LimeSDR USB micro Type-B with added shielding, this mini PC will get you up and running with the LimeNET app store in no time.

Features & Specifications

• Mainboard
  • Form Factor: 105 x 110 mm
  • Processor: Intel Core i7-7500U, two cores, 2.7 GHz (3.5 GHz boost)
  • Memory: 32 GB (2 x 16 GB SO-DIMM) DDR4 2133 MHz
  • Storage: 512 GB SSD
  • Video: Intel HD Graphics 620
• Mini DisplayPort 1.2: 3840 x 2160 @ 60 Hz
• HDMI 2.0: 4096 x 2160 @ 60 Hz
• Audio: Realtek ALC255
• Connectivity
  • 1 x USB 3.1 Type-C
  • 1 x USB 3.1
  • 2 x USB 3.0
  • 1 x Gigabit Ethernet
• Wi-Fi + Bluetooth (tentatively Intel Dual Band Wireless-AC 3168)
• Power Supply
  • Power adaptor: 19 VDC input @ 3.42 A, 65 W
  • Cooling: single fan
• Enclosure
  • Material: injection molded plastic and stainless steel
  • Dimensions: 11.2 x 12.0 x 5.2 cm (exclusive of antennas)
  • Partitions: top (black) holds mini PC, bottom (green) holds LimeSDR
• Radio (Integrated)
  • Board: LimeSDR USB micro Type-B
  • Shielding: attached to LimeSDR
  • Antennas: five (of which one is dedicated for HF reception)
  • Cables: 5 x U.FL (internal and pre-installed)
  • Transmit Range: Approximately 15 meters for LTE
  • Power Amplifier: None
  • Filters: None

The LimeNET Mini comes pre-installed with the LimeSDR USB micro Type-B board and associated cabling and antennas.
