LowPowerLab RFGateway M4
Description

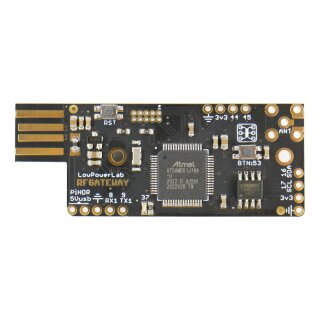

The Moteino RFGateway M4 is a compact, USB-enabled RF gateway designed for wireless communication applications, particularly in the field of IoT, home automation, and remote sensing. It is based on the SAMD51J19A Cortex M4 32-bit ARM processor, which runs at 120MHz, providing higher performance compared to earlier versions.
- Compact RF Gateway board based on the SAMD51J19A Cortex M4 32-bit 120MHz ARM processor
- Designed for use with RFM69 transceivers and RFM95/RFM96 LoRa transceivers
- Includes 4MBIT flash chip
- Plugs straight into a USB port, eliminating the inconvenience and noise of USB cables
- Use with USB serial or UART serial: may be plugged into the first 5 pins of the Pi where the serial port is located
- Built-in PCB USB connector (2.4mm PCB thickness)
- Board definition included in the Moteino SAMD 1.6.0 package
