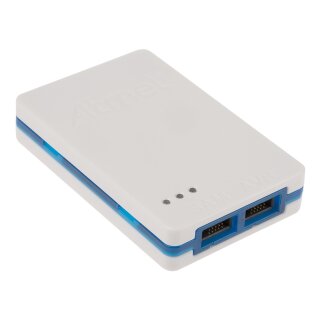

Microchip Atmel-ICE JTAG Debugger/Programmer

User Manual (EN)

Artno.: MP7-101000-P

Microchip Atmel-ICE JTAG Debugger/Programmer

JTPAG/SPI programmer and debugger for Atmel AVR 8-bit/32-bit, AVR XMEGA and SAM ARM microcontrollers

89.00 €Basic Kit159 €Full Kit

from 89.00 € incl. 19% VAT

74.79 € excl. VAT

Out of stock

Please select a model.

Atmel-ICE is a powerful development tool for debugging and programming ARM Cortex-M based SAM and AVR microcontrollers with on-chip debug capability.

Programming and on-chip debugging of all AVR 32-bit MCUs on both JTAG and aWire interfaces
Programming and on-chip debugging of all AVR XMEGA family devices on both JTAG and PDI 2-wire interfaces
JTAG and SPI programming and debugging of all AVR 8-bit MCUs with OCD support on either JTAG or debugWIRE interfaces
Programming and debugging of all SAM ARM Cortex-M based MCUs on both SWD and JTAG interfaces
Programming of all tinyAVR 8-bit MCUs with support for the TPI interface
Programming and debugging of all AVR 8-bit MCUs with UPDI

Model Overview

		ATATMEL-ICE Full Kit	ATATMEL-ICE Basic Kit
Atmel-ICE Programmer
Flat cable 10-pin 1.27mm (50mil) and 6-pin 2.54mm (100mil) connector
10-lead squid cable
Adapter board 20-pin 2.54mm (100mil) SAM JTAG/SWD connector 10-pin 2.54mm (100mil) JTAG/SWD connector 6-pin 1.27mm (50mil) SPI/debugWIRE/PDI/aWire connector
micro-USB cable
