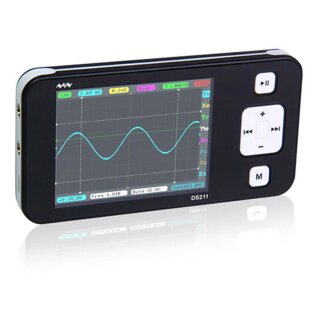

Miniware DS211 Portable Mini Oscilloscope

DS211 is an update style of DSO201, a pocket size digital storage oscilloscope fulfills basic electronic engineering requirements. It is equipped with 320x240 color display, Weighs only 65g! Portable Digital Oscilloscope DIY Kit provides waveform viewing. It is a pocket size digital storage oscilloscope is small enough to take it anywhere, and fulfills basic electronic engineering requirements. Inbuilt 8MB U-disk storage for waveform data and images. Can be powered by internal batteries, so in the field measurement, the ground wire is completely suspended, can be exactly like a multi-meter, point where to measure, without considering the problem of grounding isolation. The oscilloscope code application layer is open source. Users can develop firmware according to different needs. Can meet the demands in many fields, such as, school experiments, electronic repairing, and electric engineering.

Specifications

• Operation: Button
• Channels: 1 Analog Channel
• Horizontal Sensitivity: 1uS/Div~2S/Div. (1-2-5sequence step)
• Vertical Sensitivity: 20mv/Div~10V/Div. (1-2-5sequence step)
• Trigger Mode: Ascend / Descend Edge Trigger Mode
• Math Waveforms: -Inp / Data / -Data / Inp+D / D-Inp / Inp-
• Inbuilt Signal Generator: Sine / Square / Triangle / Sawtooth Wave
• Synchronous Mode: Auto, Normal, Single, Scan
• Auto Measurement:
  • Signal Sequence / Cycle / Duty Ratio
  • Peak Voltage / Virtual Value / Max Value / Min Value / Average
• Open Source: Application Layer Open-Source
• MCU: STM32F103VC
• ADC: MCU Internal ADC
• Analog Bandwidth: 200KHz
• Max Sample Rate: 1MS/s
• Max Sample Memory Depth: 8K
• Analog Input Impedance: >500kΩ
• Coupling: DC / AC
• AUTO_FIT: AUTO_FIT
• APP Installed: 1
• Data Transfer Interface: Micro USB Port
• Storage: 8MB USB Flash Disk Memory
• Net Weight: 66g (with Battery)
• Certification: Compliant with EU Certification CE FCC
• Screen Size: 2.8''
• Screen Resolution: 320 × 240
• Battery: 500mAh
• Dimension: 106.5mm × 55.7mm × 11.5mm

Contents

• 1× DS211 Mini Oscilloscope
• 1× x1x10 Probe
• 1× USB Cable
• 1× User Manual
