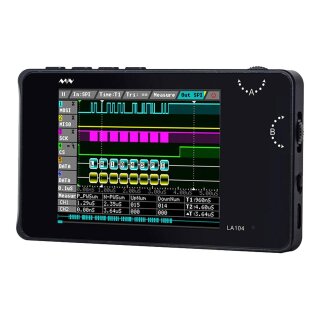

LA104 is small and portable, easy to use and carry. It is an instrument that analyzes the logical relationship of a digital system. It can collect and store multi-channel digital signals and visually display the timing relationships of these signals on the screen. 2.8 inch TFT LCD screen makes reading data faster and easier. It also has protocol analysis function, which can parse the logic signal of protocol physical layer into high-level protocol data and display it. It can be widely used in automotive electronics, communications, power, computers and other industries.
Specifications
- 3V Out Put Channel: 1
- Input Channels: 4
- Output Channels: 4
- Mode: SPI, I2C, PWM
- Minimum Capture Pulse Width: 10ns
- Input Impedance: 1mΩ
- Max Sample Rate: 100MHz
- Screen Size: 2.8''
- Dimension: 100mm × 56mm × 8.6mm
- Storage: 8MB USB Flash Disk Memory
- Certification: Compliant with EU Certification CE FCC
- Net Weight: 83g
- Screen Resolution: 320 × 240
- Battery: 500mAh
Contents
- 1× LA104 Logic Analyzer
- 2× 10-Pin Color-coded Cable
- 5× Micro-Gripper Hooks
- 1× USB Cable
- 1× User Manual
