Miniware MDP-P905 Power Supply Module

The MDP (Mini Digital Power System) is a modular, programmable power supply system. Multiple modules can be combined as needed to create a multi-channel system tailored to the target application.

The MDP-XP consists of a display control module MDP-M01 and a digital power module MDP-P905 or MDP-P906. The wireless 2.4 GHz connection allows several channels (90W output power each) to be freely combined. The MDP-XP is a linear DC power supply with high stability and reliability with an innovative user interface. The MDP-XP can be compared with significantly larger and more expensive power supply gear.

The MDP-M01 display control module is equipped with a 2.8-inch TFT screen and can display voltage and current waveforms in real-time, supports data statistics and can be linked to a maximum of six power modules simultaneously. The power module is based on highly efficient hybrid technology: The output is controlled by a low-noise switching regulator with a downstream linear regulator and thus offers a very low residual ripple of typ. 0.25 mV, fast transient response and precise fine tuning.

It is a high cost-effective programmable linear DC power supply, featuring indicators, stability, reliability and distinct user interface comparable with professional power supplies. It also provides programmable output, timing output, sequential control, automatic compensation and other powerful functions, so as to meet diversified testing needs. High efficiency linear output, 0.25mV ripple wave, high-speed transient response, and supporting precise fine-tuning. Automatically shut down and enter micro-power mode. Support USB firmware upgrade and user calibration.

Specifications

• Input: DC4.2V-30V (After startup 2.7V), 100mA-6A, Support QC3.0
• Adjustment Rate: Load Adjustment Rate < ±0.01^% Power Adjustment Rate < ±0.01^%
• Transient Response Time: ≤ 4μS
• Protection: Input Over-voltage, Under-voltage, Anti-reverse, Output Anti-backflow, Over Temperature
• Output: 30V / 5A,90W
• Ripple and Noise: 250μVrms / 3mVpp
• Line Loss Compensation Range: 5mR - 100mR
• Data Record: Max Storage: 7MB Max Recording Time: 24 Hours
• Data Transfer Interface: Micro USB Port
• Certification: Compliant with EU Certification CE FCC
• Net Weight: MDP-P905 143g

Contents

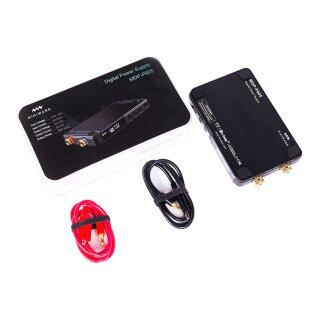

• 1× MDP-P905 Digital Power Supply
• 2× Output Cable (4.0mm Banana to Alligator)
• 1× Safety Instructions
