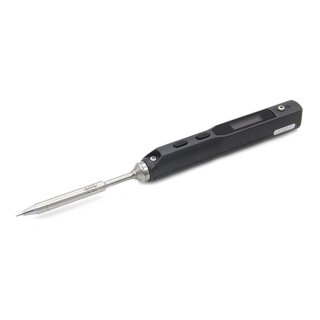

Miniware Soldering Iron TS100
Description
TS100 employs 304 stainless steel nested shell of Polycarbonate plastic. It is designed with safety circuit and anti-static structure, integrated with DC5525 12-24V port, dual-temperature sensors and accelerated sensors with smart chip. Temperature can be controlled accurately, stably and easily adjusted from 100°C to 400°C. High heating efficiency, heating up from 30°C to 300°C only takes about 10 seconds. Adopt safety circuit design, anti-static structure, usage safe. Have sleep mode and automatic over-heating warning. Through edit the parameter file, custom your own temperature curve and buttons function. Open source for writing your own App.
Specifications
- Power: 65W(Max)
- Temperature Stability: ±2%
- Temperature Range: 100°C~400°C(Max)
- Max. Operation Ambient Temperature: 40°C
- Soldering Tip Resistance to Ground: <2Ω
- Screen: OLED Screen
- Power Interface: DC5525 Power Interface
- Certification: Compliant with EU Certification CE FCC
- Control Part: Length 96mm, Diameter 16.5mm
- Net Weight: 21g (Control Part)
- Data Transfer Interface: Micro USB Interface
Contents
- 1× TS100 Controller (Black Color)
- 1× TS100 Soldering Tip (B2 / BC2 / I)
- 1× Allen key
- 1× Safety Instructions
