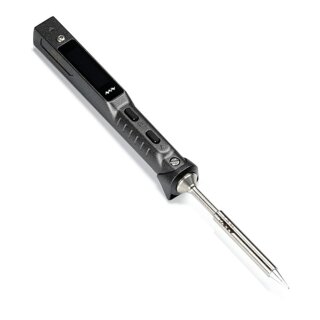

Miniware Soldering Iron TS101

TS101 controller has a sharp and tough overall appearance, and uses a larger 128x32 pixel OLED screen to display more heating data. The classic A-B button operation continues the TS100 operation habit and reduces user's learning cost. The tip insertion end of controller fixes the soldering tip with a ball screw, no hex screw to loosen before inserting and removing a tip. A new convenient and practical accessory--an anti-slip cap, looking like the head of a cat, can not only be used as a simple stand to support the iron and prevent it from rolling, but also be used for finger anti-slipping and removing the soldering tip. Smart Soldering Iron TS101 uses DC and PD dual power input. The power range of the popular DC5525 interface has been extended to DC 9-24V (up to 65W). A USB-C interface replaces the original Micro USB interface, which serves for firmware upgrade, and a standard PD power input up to 45W. The temperature adjustment range has also been optimized to 50-400? for more application scenarios. In terms of intelligent operation, TS101 has more detailed menu setting items, and the newly added ?Boost? heating function can quickly heat up in a short time to meet the welding needs of special scenes. TS101 and TS100 use the same soldering iron tips, so your existing TS100 soldering tips can continue to be used to this upgrade version iron.

Features

PD3.1 support
The Smart Soldering Iron TS101 can support Standard PD3.1 input via firmware upgrade. After upgrading, it can take in 28V when using USB-C interface for power input.

Dynamic Soldering Tip detection
say No to short circuit, safer in soldering work detect circuit in real time, prevent controller damage.

9 innovative Upgrades reform your soldering experience

• DC+PD Power Input
• 50-400°C Temp Control
• DC 9-24V Wide Voltage
• Boost Mode
• Dynamic Detection
• Wider Screen
• Upgrade Setting Menu
• Multipurpose Anti-Slip Cap
• Compatible with TS100 Tips

*DC and PD inputs can not be used at the same time

Specifications

• Voltage and Power Range:
  • DC 9-24 V, 9-65 W (MAX)
  • PD3.0 9-20 V 9-45 W (MAX)
  • PD3.1 9-28 V 9-90 W (MAX) (After Firmware Update)
• Temperature Stability: ±2%
• Temperature Range: 50°C~400°C(Max)
• Max. Operation Ambient Temperature: 40°C
• Soldering Tip Resistance to Ground: <2Ω
• Screen: OLED Screen
• Power Interface: USB Type-C Port
• Certification: Compliant with EU Certification CE FCC UKCA
• Control Part: Length 98mm
• Net Weight: 33g (Control Part + Tip)
• Data Transfer Interface: USB Type-C Port

Contents

• 1× TS101Controller (Dark Grey)
• 1× TS100 Soldering Tip (B2 / BC2 / I)
• 1× Anti-Slip Cap
• 1× User Manual
• 1× Safety Instructions
