Miniware TS1C Soldering Iron
Description
Features
- Designed and developed by e-Design, MINIWARE Cordless Soldering Station TS1C is the first new energy storage intelligent desktop soldering tool based on BLE4.2 Bluetooth communication.
- Includes two parts: a control station and a soldering pen.
- The control station connects with the soldering pen via Bluetooth wireless pairing and communication.
- Features complex remote control such as standby preheating, temperature adjustment, menu setting, and viewing information and status.
- Works as a stand and charging station for the soldering pen.
- The control station features a 128 x 64 pixel OLED screen to display the soldering pen status in real time.
- Equipped with a USB Type-C interface at the rear for standard PD2 20V, maximum 45W power input and firmware upgrade.
- Three expansion slots at the bottom of the station can be used to install different accessories like sponge slot or change accessory position, offering more functional usage.
- The top of the pen adopts a USB Type-C interface for firmware upgrade (under the stainless steel decorative piece), which can be used for power input in emergency cases.
- The pen has a built-in high-efficiency energy storage supercapacitor, with 36W maximum heating power, it can continuously solder more than 180 solder joints (0805) under a single full charge.
Model Overview
| TS1C Control Station | |||
|---|---|---|---|
| Model | TS1C-S | Screen | 128 x 64 pixel OLED screen |
| Interface | USB Type-C | Safety Protection | Over current protection |
| Maximum Input Voltage | PD2 20V | Maximum Input Power | 45W |
| Size | Control station: 44.5 x 122 x 73 mm Sponge slot: 42 x 43 x 10mm |
Weight | 186g (including a sponge slot) |
| Other | Three expansion slots for multiple expandable accessories | ||
| TS1C Soldering Pen | |||
|---|---|---|---|
| Model | TS1C-P | Interface | USB Type-C |
| Capacitance | 750F | Charging Time | 7 minutes |
| Maximum Heating Power | 36W | Temperature Range | 100°C up to 400°C 212°F up to 752°F |
| Temperature Stability | ±3% | Soldering Tip | MINIWARE 3.5mm audio interface soldering tips (TS80/80P soldering tips series) |
| Temperature Range | 100°C up to 400°C 212°F up to 752°F |
Soldering Tip | MINIWARE 3.5mm audio interface soldering tips (TS80/80P soldering tips series) |
| Size | φ23*133 (mm) | Weight | 62 g (without soldering tip) |
| Safety Protection | |||

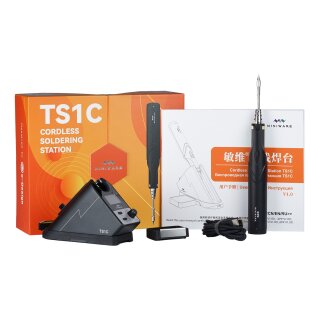

Package Contents
- Device
- TS1C Control Station
- Soldering Tip (TS-B02)
- Silicone Cable
- Sponge Slot (including sponge)
- User Manual
| Shipping weight: | 0.68 Kg |
