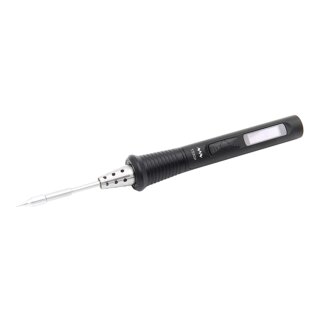

Miniware TS80P Soldering Iron

Artno.: MI6-100803
GTIN: 6970634010864
Manufacturers: Miniware

TS80P smart soldering iron, 30 W, max. 400°C, smart chip for Port Protection

89,90 €

incl. 19% VAT

(75,55 € excl. VAT)

On stock

Description
Product Reviews

TS80P is the upgrade version of TS80 Smart Soldering Iron. TS80P is a smart soldering iron powered by USB Type-C PD2.0/QC3.0 standard input, which can be powered by charging plugs, power banks and mobile power supplies that comply with PD2.0 (12V 3A)/QC3.0 (9V 2A) standard. Its output power has been increased from 18W to 30W max, with an 8-second heating time at fastest from room temperature to 300°C, meeting a wider range of soldering.

TS80P controller is made of aluminum alloy through CNC into a compact structure and high-tech design, ergonomic, beautiful and fashionable. The controller is also equipped with an OLED screen, so that you can monitor the status of the soldering iron at any time. Moreover, it features a brand new easy-push tip fastener, which provides a best holding experience and an easy push to loosen the soldering tip for quick replacement. With a built-in smart chip, TS80P can smartly control the rise and fall of tip temperature, and features sleep, automatic power-off, safety protection and other modes. The code application layer is open source; you can develop firmware for the soldering iron freely as needed.

TS80P shares the same tips with TS80. The soldering tip has an internal thermal ceramic heating core, and through the pure copper heat conduction, it can quickly transfer heat to the tip of soldering tip, achieving an excellent temperature control performance.

Features:

OLED screen, full body CNC aluminum alloy casing
USB Type-C 0/QC3.0 standardinput
Power increased from 18W to 30W max
Only 8s to heat from room temperature to 300°C
Brand new easy-push tip fastener, one push to loosen tips
Builtin smart chip for Port Protection
Share same tips with TS80

Specifications

Power: 30W (Max)
Temperature Stability: ±3%
Temperature Range: 100°C~400°C(Max)
Max Operation Ambient Temperature: 40°C
Soldering Tip Resistance to Ground: <2Ω
Screen: OLED Screen
Power Interface: USB Type-C Port
Certification: Compliant with EU Certification CE FCC
Input: 9V/2A (QC 3.0) / 12V 3A (PD2.0)
Control Part: Length 96mm
Net Weight: 38g (Control Part)
Data Transfer Interface: USB Type-C Port

1× TS80P Controllor (Black Color)
1× Soldering Tip B02
1× Safety Instructions

Shipping weight:	0,12 kg
