Official Raspberry Pi AI HAT+

Artno.: RP2-514300-P
Manufacturers: Raspberry Pi

Shield for the Raspberry Pi 5, Fully integrated into Raspberry Pi's camera software, Includes 16mm stacking header, spacers, screws, Fits Raspberry Pi 5 with Active Cooler

Variant: 77,90 €13 TOPS

121,90 €26 TOPS

from

77,90 €

incl. 19% VAT

(65,46 € excl. VAT)

plus

On stock

Please select a model.

Description
Product Reviews

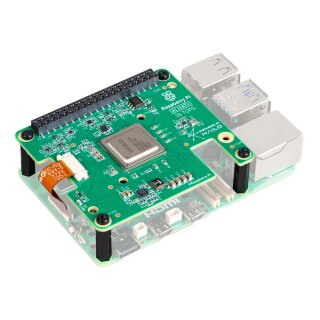

The Raspberry Pi AI HAT+ is an add-on board with a built-in Hailo AI accelerator for Raspberry Pi 5. It provides an accessible, cost-effective, and power-efficient way to integrate high-performance AI. Explore applications including process control, security, home automation, and robotics.

Variants

The AI HAT+ is available in 13 and 26 tera-operations per second (TOPS) variants, built around the Hailo-8L and Hailo-8 neural network inference accelerators.

The 13 TOPS variant capably runs neural networks for applications including object detection, semantic and instance segmentation, pose estimation, and more.
The 26 TOPS variant can handle larger networks, can run them more quickly, and can more effectively run multiple networks simultaneously.

Features

Hailo-8 or Hailo-8L accelerator offering 26 TOPS or 13 TOPS inferencing performance
Fully integrated into Raspberry Pi's camera software stack
Conforms to Raspberry Pi HAT+ specification
Supplied with 16mm stacking header, spacers, and screws for fitting on Raspberry Pi 5 with Raspberry Pi Active Cooler in place
Operating temperature: 0°C to 50°C (ambient)

Communication and Compatibility

The AI HAT+ communicates using Raspberry Pi 5's PCIe Gen 3 interface. When the host Raspberry Pi 5 is running an up-to-date Raspberry Pi OS image, it automatically detects the on-board Hailo accelerator and makes the NPU available for AI computing tasks.

The built-in rpicam-apps camera applications in Raspberry Pi OS natively support the AI module, automatically using the NPU to run compatible post-processing tasks.
