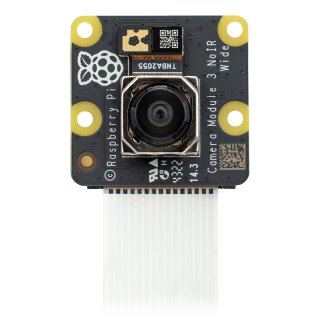

Official Raspberry Pi Camera Module 3 NoIR Wide
Description
The Raspberry Pi camera module 3 is the latest camera module from Raspberry Pi. Compared to the previous version 2 the new Raspberry Pi camera module 3, offers an improved low-light sensitivity, High dynamic range (HDR) support and powered autofocus.
The camera module houses the Sony IMX708 image sensor. Camera Module 3 is available in visible-light-only and infrared-sensitive (NoIR) variants, and with either a standard (75°) or wide-angle (120°) lens. A FPC cable for connection to a Raspberry Pi is supplied as standard.
Specifications
| Camera Module 3 | Camera Module 2 | ||
|---|---|---|---|
| Sensor | Type | Sony IMX708 | Sony IMX219 |
| Resolution | 11.9 MP | 8 MP | |
| Sensor Diagonal | 7.05 mm | 4.6 mm | |
| Pixel size | 1.4×1.4 µm | 1.12×1.12 µm | |
| Picture output | RAW12/10/8, COMP8 | ||
| Focus | Motorised auto focus | Manually adjustable | |
| Lens | standard (75°) or wide-angle (120°) |
Standard (76°) | |
| IR cut filter | integrated or without (NoIR) |
||
| Interfaces | CSI, 200mm FPC included | ||
| Shipping weight: | 0.03 Kg |
