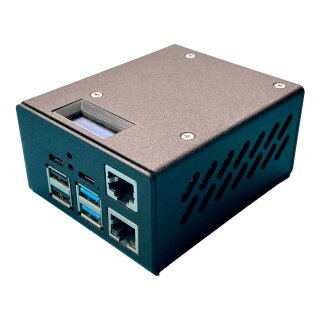

PiKVM V3 Preassembled Kit (incl. Pi4/2GB)
Description
The PiKVM v3 HAT Board is designed to work with the Raspberry Pi 4.
It provides the following features:
- HDMI capture device with max resolution 1080p 50Hz and audio support
- Keyboard and mouse emulation
- Mass storage emulation (i.e., virtual flash drive or CD drive provided by image file saved on PiKVM)
- Ability to simulate "removal and insertion" for USB for above mentioned devices
- ATX controller (allowing to switch power even if target device is off or operating system hangs)
- Onboard real-time clock
- 5v PWM fan controller
- USB and RJ-45 serial console
Box Contents
- Raspberry Pi 4 Model B (2 GB)
- PiKVM v3 steel case including display, cooling fan and mounting material
- PiKVM v3 HAT for Raspberry Pi 4
- Pre-loaded 32 GB PiKVM microSD card
- ATX adapter board
- USB-C bridge board (see note below)
- Flat CSI-2 cable
- 7x colorful jumpers
- 4x brass standoffs
- 8x screws
- Wires for connecting the ATX interface to the motherboard
Note: The USB-C bridge board is packaged together with the ATX adapter board (see here).
Requirements
To use PiKVM v3, you will need the following things, which are NOT included in this kit and needed to be ordered seperately:
- 5.1v 3A power supply with USB-C
- A regular HDMI cable
- USB-C to USB-A cable with DATA lines (for keyboard and mouse emulation)
- Straight Ethernet cable (NOT crossover, to connect the HAT board and ATX board)
| Shipping weight: | 0.50 Kg |
