PiKVM v3.3 HAT

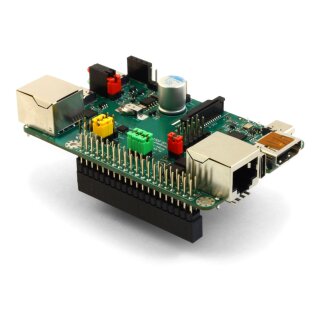

The PiKVM v3 HAT Board is designed to work with the Raspberry Pi 4.

It provides the following features:

• HDMI capture device with max resolution 1080p 50Hz and audio support
• Keyboard and mouse emulation
• Mass storage emulation (i.e., virtual flash drive or CD drive provided by image file saved on PiKVM)
• Ability to simulate "removal and insertion" for USB for above mentioned devices
• ATX controller (allowing to switch power even if target device is off or operating system hangs)
• Onboard real-time clock
• 5v PWM fan controller
• USB and RJ-45 serial console

Box Contents

• PiKVM v3 HAT for Raspberry Pi 4
• USB-C bridge board
• ATX adapter board
• Flat CSI-2 cable
• 7x colorful jumpers
• 4x brass standoffs
• 8x screws
• Wires for connecting the ATX interface to the motherboard

Requirements

To use PiKVM v3, you will need the following things, which are NOT included in the kit:

• Raspberry Pi 4 (any amount of RAM is OK)
• 5.1v 3A power supply with USB-C
• A regular HDMI cable
• USB-C to USB-A cable with DATA lines (for keyboard and mouse emulation)
• Straight Ethernet cable (NOT crossover, to connect the HAT board and ATX board)
• microSD card at least 16 GB and class 10 is strongly recommended
