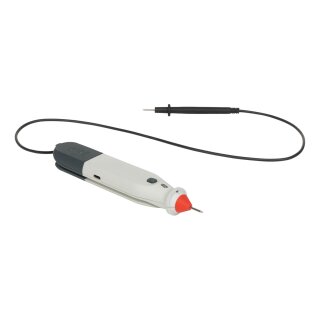

Pokit Pro Bluetooth Oscilloscope and Multimeter
Description
Get precise measurements effortlessly with Pokit Pro - your all-in-one solution for multimeter, oscilloscope, and logger needs. Seamlessly connect Pokit Pro to the Pokit App for real-time data recording and analysis. Whether you're a DIY enthusiast, technician, or engineer, Pokit Pro is a versatile and user-friendly tool designed to save you time and money. Upgrade your toolbox today!
Model Overview
| Pokit Pro | Pokit Meter | |
|---|---|---|
| Multimeter | ||
| Voltage Measurement | 1mV to 600V DC, 600V AC (True RMS), CAT III, ±1% | 10mV to 60V DC, 42V AC (True RMS), ±1% |
| Current Measurement | 1μA to 10A AC (True RMS)/DC max, ±1% | 1mA to 2A max, ±1% |
| True RMS Frequency | 40 to 100Hz | |
| Resistance Measurement | 100m to 1M Ohm, ±1%, 3M Ohm ±5% | 1 to 1M Ohm, ±5% |
| Temperature | 0°C to 60°C ±1% 32°F to 140°F ±1.8°F |
|
| External Temperature (External Temperature is only measurable with the Pokit Pro NTC Temperature Probe) |
-40°C to 120°C ±1% @25°C + 0.005%/°C -40°F to 248°F ±1% @77°F + 1.8%/°F |
/ |
| Diode Check | 10V to 1V | Check Only |
| Capacitance | 1nF to 1000μF, ±2% | / |
| Continuity Check | Yes | |
| Continuity Check Delay (max) | 100ms | 200ms |
| Continuity Buzzer | Internal Buzzer & App | App only |
| True RMS | Yes | |
| Multichannel (Simultaneously display up to 4 measurements/channels using 4 Pokit Pro devices) |
Yes | / |
| Pokit Pro | Pokit Meter | |
|---|---|---|
| Oscilloscope | ||
| Voltage Measurement | 1mV to 850Vpk, 600V AC (RMS), CAT III | 10mV to 60Vpk, 42V AC (RMS) |
| Current Measurement | 1μA to 10A max | 1mA to 2A max |
| DC Accuracy | ±1% | |
| Analog Bandwidth | -3dB @ 200kHz | |
| Sampling | 12bit, 1M sample/sec | |
| Input Impedance (DC) | 10M Ohm | 1M Ohm |
| Acquisition Button | Yes | / |
| One-Time Acquisition | Yes | |
| Continuous Sampling | Yes | / |
| Trigger | Yes | |
| Multichannel (Simultaneously display up to 4 measurements/channels using 4 Pokit Pro devices) |
Yes | / |
| Channel Naming | Yes | / |
| RGB Channel Identification | Yes | / |
| Waveform Name/Save/Export | Yes | |
| Digital Fourier Transform (DFT) | Yes | |
| Data Logger | ||
| Logged Parameters | Voltage, Current, Temperature | |
| Logging | 28kB, 20min/sample @ 6 months | 12kB, 45min/sample @ 6 months |
| Sample Rate | 500ms to 24hr | 1s to 1hr |
| Other Functions | ||
| Device Personal Naming | Yes | |
| Torch | Yes | / |
| Replaceable Fuse | Yes | |
| Battery | Rechargeable (USB-C) | Button Cell (CR2032) |
| Battery Life (Paired) | 128kB, 2hr/sample @ 6 months | 64kB, 7.2hr/sample @ 6 months |
| USB Rechargeable | Yes | / |
| Battery Gauge | Flat Only | |
| Locator | Device Locator | Key Finder |
| Connectivity & Compliance | ||
| BLE | v5.0 | v4.3 |
| iOS | v9.0 or later | |
| Android | v5.0 or later | |
| EMC | CE, FCC, RCM, MiC | |
| Electrical Safety | IEC61010 | / |
| Physical & Accessories | ||
| Form | Pen Style | Keyfob (Keychain Mountable) |
| Retractable Leads | / | Yes |
| Storable Leads | Yes | / |
| Size | 170mm x 30mm x 23mm, 6.7'' x 1.2'' x 0.91'' |
⌀ 50mm x 18mm, ⌀ 1.96'' x 0.709'' |
| Operating Temperature | -10°C to 40°C 14°F to 104°F |
|
| Lead Span (max tip-to-tip) | 800mm, 31.5'' | 480mm, 18.9'' |
| Probe Tip Length | 13mm, 0.51'' | 6mm, 0.23'' |
| Weight | 78g, 2.75oz | 30g, 1.06oz |
| Attachable Probe Clips | Yes | |
| Carry Case | Hard Case | Soft Case |
Package Contents
- Device
- Hard case
- USB-C charging cable
- Probe clips
- Probe tip cover
- CAT III probe tip sheaths
